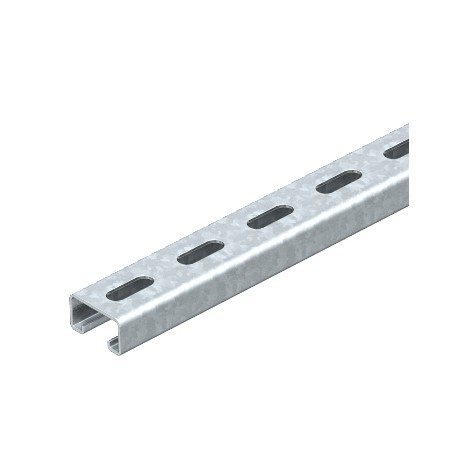

OBO BETTERMANN MS4121P3000A2 MS 21 L 3M V2A 1122928 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 3000x41x21, Stainless stee.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MS 21 L 3M V2A 1122928 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 3000x41x21, Stainless stee..

MS4121P3000A2

1122928

OBO BETTERMANN

3 m.

Profile rails perforated, slot width 22 mm, 3000x41x21, Stainless steel, grade 304, VA, 1.4301 MS4121 mounting rail, slot 22 mm, A2, perforated. Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.

Automation > Mounting rail/-profile
MS Profile

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann profile rails perforated (part number MS4121P3000A2) act as corrosion-resistant framing channels designed to secure cabling accessories and electrical hardware. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Breakable: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 7,33 kg CO2e / 1 Meter
  • Dimension: 3000x41x21
  • Dimension L: 3000 mm
  • Drill hole spacing, centre: 50 mm
  • Height: 21 mm
  • Hole size: 14x28 mm
  • Length: 3000 mm
  • Maintain electrical functions: no
  • Material: Stainless steel 1.4301
  • Material thickness: 2 mm
  • Profile shape: C profile
  • Slot width: 22 mm
  • Static value A: 1,65 cm²
  • Static value ly: 0,95 cm⁴
  • Static value lz: 4,51 cm⁴

More info

▲
Breakableno
CO2 Footprint (GWP) Cradle-to-Gate7,33 kg CO2e / 1 Meter
Dimension3000x41x21
Dimension L3000 mm
Drill hole spacing, centre50 mm
Height21 mm
Hole size14x28 mm
Length3000 mm
Maintain electrical functionsno
MaterialStainless steel 1.4301
Material thickness2 mm
Profile shapeC profile
Slot width22 mm
Static value A1,65 cm²
Static value ly0,95 cm⁴
Static value lz4,51 cm⁴
Static value Wy0,89 cm³
Static value Wz2,2 cm³
SurfaceBright, treated
Type of perforationPerforated back
Version forSingle profile
Width41 mm
With perforationyes
With toothingyes
