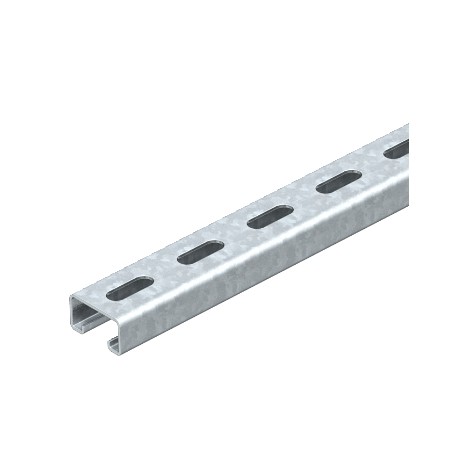

MS 21 L 3M FT 1122924 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 3000x41x21, Hot-dip galvani..
MS4121P3000FT
1122924
OBO BETTERMANN
3 m.
Automation > Mounting rail/-profile
MS Profile
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Profile rails perforated from Obo Bettermann, item number MS4121P3000FT, provide durable slotted framing channels utilized throughout electrical and mechanical setups for securing conduits, pipes, and fixtures. Installers depend on these channels for dependable modular support structures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Breakable: no
- CO2 Footprint (GWP) Cradle-to-Gate: 3,179 kg CO2e / 1 Meter
- Dimension: 3000x41x21
- Dimension L: 3000 mm
- Drill hole spacing, centre: 50 mm
- Height: 21 mm
- Hole size: 14x28 mm
- Length: 3000 mm
- Maintain electrical functions: yes
- Material: Steel
- Material thickness: 2 mm
- Profile shape: C profile
- Slot width: 22 mm
- Static value A: 1,65 cm²
- Static value ly: 0,95 cm⁴
- Static value lz: 4,51 cm⁴
More info
▲| Breakable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 3,179 kg CO2e / 1 Meter |
| Dimension | 3000x41x21 |
| Dimension L | 3000 mm |
| Drill hole spacing, centre | 50 mm |
| Height | 21 mm |
| Hole size | 14x28 mm |
| Length | 3000 mm |
| Maintain electrical functions | yes |
| Material | Steel |
| Material thickness | 2 mm |
| Profile shape | C profile |
| Slot width | 22 mm |
|---|---|
| Static value A | 1,65 cm² |
| Static value ly | 0,95 cm⁴ |
| Static value lz | 4,51 cm⁴ |
| Static value Wy | 0,89 cm³ |
| Static value Wz | 2,2 cm³ |
| Surface | Hot-dip galvanised |
| Type of perforation | Perforated back |
| Version for | Single profile |
| Width | 41 mm |
| With perforation | yes |
| With toothing | yes |
