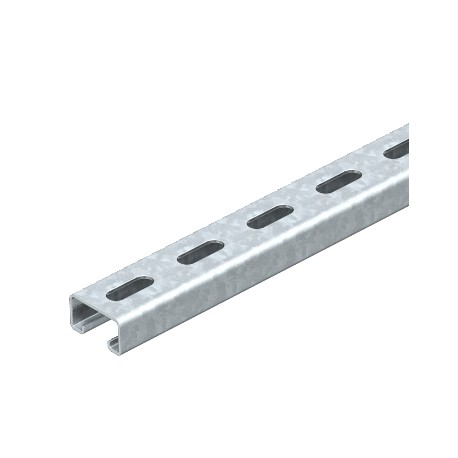

OBO BETTERMANN MS4121P3000FS MS4121P3000FS 1122920 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 3000x41x21, Strip-galvanise.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MS4121P3000FS 1122920 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 3000x41x21, Strip-galvanise..

MS4121P3000FS

1122920

OBO BETTERMANN

3 m.

Profile rails perforated, slot width 22 mm, 3000x41x21, Strip-galvanised, DIN EN 10147, Steel, St Profile MS4121P3000FS, perfor., slot width 22mm 3000x41x21 Steel, St, strip galvanized, DIN EN 10346 MS4121 mounting rail, slot 22 mm, FS, perforated. Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.

Automation > Mounting rail/-profile
MS Profile

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Breakableno
CO2 Footprint (GWP) Cradle-to-Gate3,4275 kg CO2e / 1 Meter
Dimension3000x41x21
Dimension L3000 mm
Drill hole spacing, centre50 mm
Height21 mm
Hole size14x28 mm
Length3000 mm
Maintain electrical functionsyes
MaterialSteel
Material thickness2 mm
Profile shapeC profile
Slot width22 mm
Static value A1,65 cm²
Static value ly0,95 cm⁴
Static value lz4,51 cm⁴
Static value Wy0,89 cm³
Static value Wz2,2 cm³
SurfaceStrip galvanized
Type of perforationPerforated back
Version forSingle profile
Width41 mm
With perforationyes
With toothingyes
