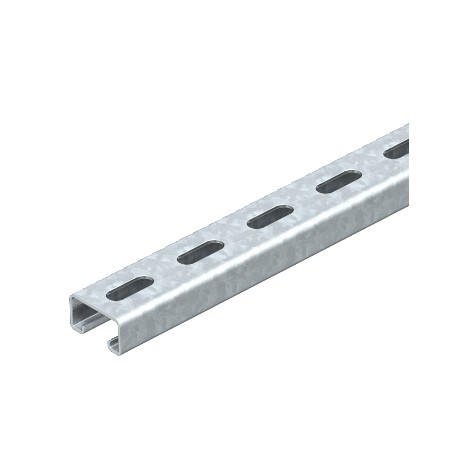

MS 21 L 300 FT 1122934 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 300x41x21, Hot-dip galvani..
MS4121P0300FT
1122934
OBO BETTERMANN
1 Pcs.
Profile rails perforated, slot width 22 mm, 300x41x21, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
MS4121 mounting rail, slot 22 mm, FT, perforated. Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
Automation > Mounting rail/-profile
MS Profile
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann MS4121P0300FT is a profile rails perforated part utilized for mounting modular control components and supporting structured cabling systems. Slotted profiles provide excellent structural adaptability. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Breakable: no
- CO2 Footprint (GWP) Cradle-to-Gate: 0,9545 kg CO2e / 1 Piece
- Dimension: 300x41x21
- Dimension L: 300 mm
- Drill hole spacing, centre: 50 mm
- Height: 21 mm
- Hole size: 14x28 mm
- Length: 300 mm
- Maintain electrical functions: yes
- Material: Steel
- Material thickness: 2 mm
- Profile shape: C profile
- Slot width: 22 mm
- Static value A: 1,65 cm²
- Static value ly: 0,95 cm⁴
- Static value lz: 4,51 cm⁴
More info
▲| Breakable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,9545 kg CO2e / 1 Piece |
| Dimension | 300x41x21 |
| Dimension L | 300 mm |
| Drill hole spacing, centre | 50 mm |
| Height | 21 mm |
| Hole size | 14x28 mm |
| Length | 300 mm |
| Maintain electrical functions | yes |
| Material | Steel |
| Material thickness | 2 mm |
| Profile shape | C profile |
| Slot width | 22 mm |
|---|---|
| Static value A | 1,65 cm² |
| Static value ly | 0,95 cm⁴ |
| Static value lz | 4,51 cm⁴ |
| Static value Wy | 0,89 cm³ |
| Static value Wz | 2,2 cm³ |
| Surface | Hot-dip galvanised |
| Type of perforation | Perforated back |
| Version for | Single profile |
| Width | 41 mm |
| With perforation | yes |
| With toothing | yes |
