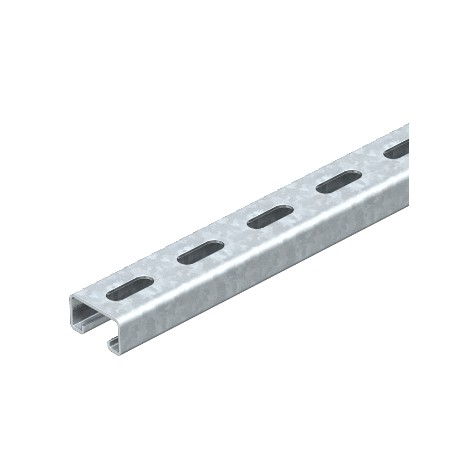

MS 21 L 2M FT 1122923 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 2000x41x21, Hot-dip galvani..
MS4121P2000FT
1122923
OBO BETTERMANN
2 m.
Automation > Mounting rail/-profile
MS Profile
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Forming an integral part of industrial mounting systems, the Obo Bettermann profile rails perforated provide secure slotted channels for fastening electrical fixtures, clamps, and support arms. These rails allow precise positioning during installation. Please note that pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Breakable: no
- CO2 Footprint (GWP) Cradle-to-Gate: 3,1824 kg CO2e / 1 Meter
- Dimension: 2000x41x21
- Dimension L: 2000 mm
- Drill hole spacing, centre: 50 mm
- Height: 21 mm
- Hole size: 14x28 mm
- Length: 2000 mm
- Maintain electrical functions: yes
- Material: Steel
- Material thickness: 2 mm
- Profile shape: C profile
- Slot width: 22 mm
- Static value A: 1,65 cm²
- Static value ly: 0,95 cm⁴
- Static value lz: 4,51 cm⁴
More info
▲| Breakable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 3,1824 kg CO2e / 1 Meter |
| Dimension | 2000x41x21 |
| Dimension L | 2000 mm |
| Drill hole spacing, centre | 50 mm |
| Height | 21 mm |
| Hole size | 14x28 mm |
| Length | 2000 mm |
| Maintain electrical functions | yes |
| Material | Steel |
| Material thickness | 2 mm |
| Profile shape | C profile |
| Slot width | 22 mm |
|---|---|
| Static value A | 1,65 cm² |
| Static value ly | 0,95 cm⁴ |
| Static value lz | 4,51 cm⁴ |
| Static value Wy | 0,89 cm³ |
| Static value Wz | 2,2 cm³ |
| Surface | Hot-dip galvanised |
| Type of perforation | Perforated back |
| Version for | Single profile |
| Width | 41 mm |
| With perforation | yes |
| With toothing | yes |
