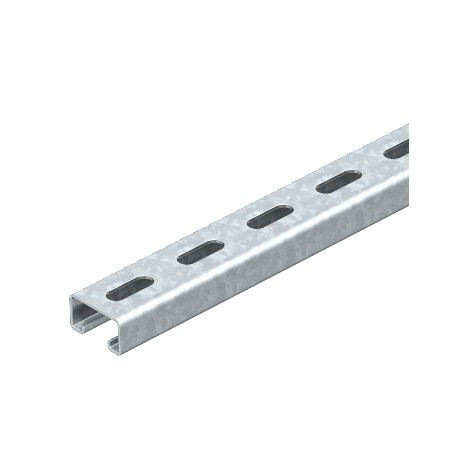

OBO BETTERMANN MS4121P2000FS MS4121P2000FS 1122918 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 2000x41x21, Strip-galvanise.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MS4121P2000FS 1122918 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 2000x41x21, Strip-galvanise..

MS4121P2000FS

1122918

OBO BETTERMANN

2 m.

Profile rails perforated, slot width 22 mm, 2000x41x21, Strip-galvanised, DIN EN 10147, Steel, St Profile MS4121P2000FS, perfor., slot width 22mm 2000x41x21 Steel, St, strip galvanized, DIN EN 10346 MS4121 mounting rail, slot 22 mm, FS, perforated. Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.

Automation > Mounting rail/-profile
MS Profile

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Crafted by Obo Bettermann, part number MS4121P2000FS is a profile rail perforated element engineered to support electrical equipment and route cable networks efficiently in commercial buildings and industrial plants. Technicians rely on these slotted channels to build reliable framing systems that accommodate diverse fastening hardware and accessories. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Breakable: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 3,4316 kg CO2e / 1 Meter
  • Dimension: 2000x41x21
  • Dimension L: 2000 mm
  • Drill hole spacing, centre: 50 mm
  • Height: 21 mm
  • Hole size: 14x28 mm
  • Length: 2000 mm
  • Maintain electrical functions: yes
  • Material: Steel
  • Material thickness: 2 mm
  • Profile shape: C profile
  • Slot width: 22 mm
  • Static value A: 1,65 cm²
  • Static value ly: 0,95 cm⁴
  • Static value lz: 4,51 cm⁴

More info

▲
Breakableno
CO2 Footprint (GWP) Cradle-to-Gate3,4316 kg CO2e / 1 Meter
Dimension2000x41x21
Dimension L2000 mm
Drill hole spacing, centre50 mm
Height21 mm
Hole size14x28 mm
Length2000 mm
Maintain electrical functionsyes
MaterialSteel
Material thickness2 mm
Profile shapeC profile
Slot width22 mm
Static value A1,65 cm²
Static value ly0,95 cm⁴
Static value lz4,51 cm⁴
Static value Wy0,89 cm³
Static value Wz2,2 cm³
SurfaceStrip galvanized
Type of perforationPerforated back
Version forSingle profile
Width41 mm
With perforationyes
With toothingyes
