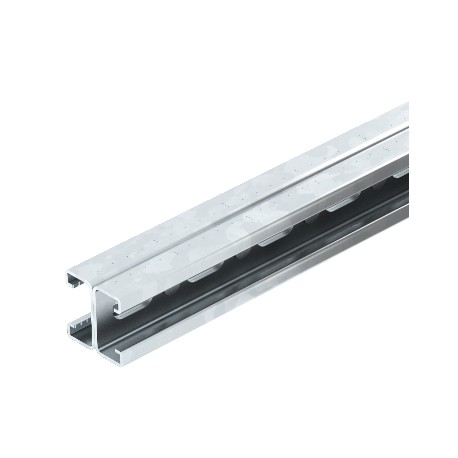

OBO BETTERMANN MS 21 D L6M 2V2A MS 21 D L6M 2V2A 1122954 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 6000x42x41, Stainless st.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MS 21 D L6M 2V2A 1122954 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 6000x42x41, Stainless st..

MS 21 D L6M 2V2A

1122954

OBO BETTERMANN

6 Pcs.

Profile rails perforated, slot width 22 mm, 6000x42x41, Stainless steel, grade 304, VA, 1.4301 MS4121 mounting rail, slot 22 mm, double, A2, perforated. Heavy-duty unistrut with continuous perforation in base, slot width 22 mm. Double version, i.e. two profile rails are interconnected on the base (welded).

Automation > Mounting rail/-profile
MS Profile

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Manufactured from high-grade stainless steel, this Obo Bettermann profile rails perforated component offers exceptional resistance to corrosive elements while serving as a modular mounting channel for complex wiring layouts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Breakable: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 14,6146 kg CO2e / 1 Meter
  • Dimension: 6000x41x42
  • Dimension L: 6000 mm
  • Height: 42 mm
  • Hole size: 14x28 mm
  • Length: 6000 mm
  • Maintain electrical functions: no
  • Material: Stainless steel 1.4301
  • Material thickness: 2 mm
  • Profile shape: C profile
  • Slot width: 22 mm
  • Static value A: 3,3 cm²
  • Static value ly: 5,38 cm⁴
  • Static value lz: 9,02 cm⁴
  • Static value Wy: 1,28 cm³

More info

▲
Breakableno
CO2 Footprint (GWP) Cradle-to-Gate14,6146 kg CO2e / 1 Meter
Dimension6000x41x42
Dimension L6000 mm
Height42 mm
Hole size14x28 mm
Length6000 mm
Maintain electrical functionsno
MaterialStainless steel 1.4301
Material thickness2 mm
Profile shapeC profile
Slot width22 mm
Static value A3,3 cm²
Static value ly5,38 cm⁴
Static value lz9,02 cm⁴
Static value Wy1,28 cm³
Static value Wz0,25 cm³
SurfaceBright, treated
Type of perforationPerforated bar
Version forDouble profile
Width41 mm
With toothingyes

Product Datasheet
