View larger
Images are for illustrative purposes only. Please refer to data sheet for details

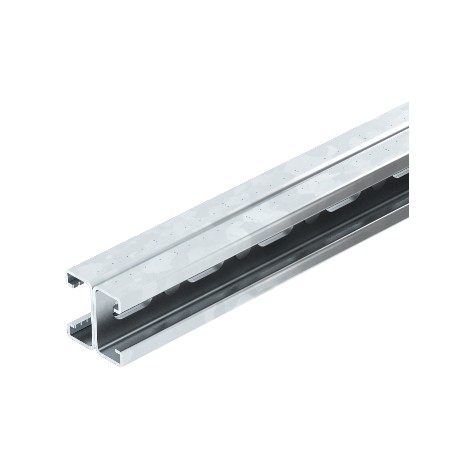

MS4142P6000FS 1122948 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 6000x42x41, Strip-galvanise..
MS4142P6000FS
1122948
OBO BETTERMANN
6 m.
Profile rails perforated, slot width 22 mm, 6000x42x41, Strip-galvanised, DIN EN 10147, Steel, St
Profile MS4142P6000FS, perfor., groove width 22mm 6000x41x42 Steel, St, strip galvanized, DIN EN 10346
MS4142 mounting profile, 22 mm slot, double, FS, perforated. Profile/mounting rail with through-hole in the bottom in reinforced version and with 22 mm groove width. In a double version, i.e. with two profiles joined together at the base (riveted).
Automation > Mounting rail/-profile
MS Profile
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Heavy-duty profile/mounting rail with continuous perforation in base, slot width 22 mm Double version, i.e. two profile rails are interconnected on the base (clinched).
| Feature Name | Feature Value |
|---|---|
| Length (EF001438) | 6000 mm |
| Width (EF000008) | 41 mm |
| Height (EF000040) | 42 mm |
| Material thickness (EF000386) | 2 mm |
| Profile shape (EF005179) | C-profile |
| Type of perforation (EF004147) | Rim perforated |
| With toothing (EF000571) | Yes |
| Area moment of inertia Iy (EF012513) | 5.38 cm4 |
| Area of inertia Iz (EF012514) | 9.02 cm4 |
| Moment of resistance Wy (EF012503) | 1.28 cm³ |
| Moment of resistance Wz (EF012504) | 0.25 cm³ |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Pre-galvanised |
| Weight (EF000167) | 3.03 kg |
