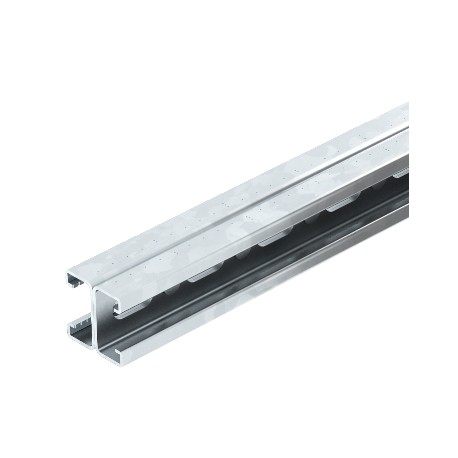

OBO BETTERMANN MS4142P3000FT MS 21 D L 3M FT 1122944 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 3000x42x41, Hot-dip galva.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MS 21 D L 3M FT 1122944 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 3000x42x41, Hot-dip galva..

MS4142P3000FT

1122944

OBO BETTERMANN

3 m.

Profile rails perforated, slot width 22 mm, 3000x42x41, Hot-dip galvanised, DIN EN ISO 1461, Steel, St MS4121 mounting rail, slot 22 mm, double, FT, perforated. Heavy-duty profile/mounting rail with continuous perforation in base, slot width 22 mm. Double version, i.e. two profile rails are interconnected on the base (clinched).

Automation > Mounting rail/-profile
MS Profile

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

MS4142P3000FT profile rails perforated from Obo Bettermann serve as robust double-channel mounting structures designed to handle complex load-bearing electrical applications. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 6,5375 kg CO2e / 1 Meter
  • Dimension: 3000x41x42
  • Dimension L: 3000 mm
  • Height: 42 mm
  • Hole size: 14x28 mm
  • Length: 3000 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Material thickness: 2 mm
  • Profile shape: C profile
  • Slot width: 22 mm
  • Static value A: 3,3 cm²
  • Static value ly: 5,38 cm⁴
  • Static value lz: 9,02 cm⁴
  • Static value Wy: 1,28 cm³
  • Static value Wz: 0,25 cm³

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate6,5375 kg CO2e / 1 Meter
Dimension3000x41x42
Dimension L3000 mm
Height42 mm
Hole size14x28 mm
Length3000 mm
Maintain electrical functionsno
MaterialSteel
Material thickness2 mm
Profile shapeC profile
Slot width22 mm
Static value A3,3 cm²
Static value ly5,38 cm⁴
Static value lz9,02 cm⁴
Static value Wy1,28 cm³
Static value Wz0,25 cm³
SurfaceHot-dip galvanised
Type of perforationPerforated bar
Version forDouble profile
Width41 mm
With toothingyes
