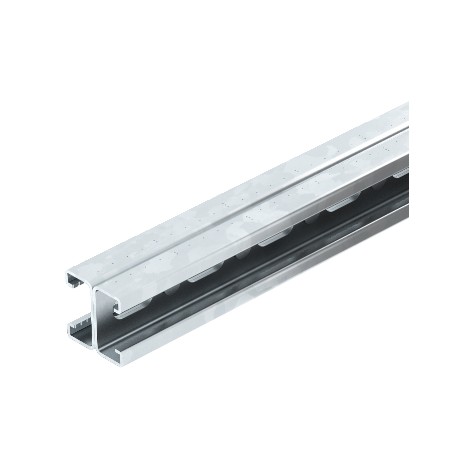

OBO BETTERMANN MS4142P3000FS MS4142P3000FS 1122947 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 3000x42x41, Strip-galvanise.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MS4142P3000FS 1122947 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 3000x42x41, Strip-galvanise..

MS4142P3000FS

1122947

OBO BETTERMANN

3 m.

Profile rails perforated, slot width 22 mm, 3000x42x41, Strip-galvanised, DIN EN 10147, Steel, St Profile MS4142P3000FS, perfor., slot width 22mm 3000x41x42 Steel, St, strip galvanized, DIN EN 10346 MS4142 mounting rail, slot 22 mm, double, FS, perforated. Heavy-duty profile/mounting rail with continuous perforation in base, slot width 22 mm. Double version, i.e. two profile rails are interconnected on the base (clinched).

Automation > Mounting rail/-profile
MS Profile

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Perforated profile rails are utilized across industrial facilities to create adjustable mounting frameworks for cable support systems, junction boxes, and electrical panels. This Obo Bettermann MS4142P3000FS C-profile features internal toothing for enhanced load retention and a strip-galvanized finish.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Length (EF001438): 3000 mm
  • Width (EF000008): 41 mm
  • Height (EF000040): 42 mm
  • Material thickness (EF000386): 2 mm
  • Profile shape (EF005179): C-profile
  • Type of perforation (EF004147): Rim perforated
  • With toothing (EF000571): Yes
  • Area moment of inertia Iy (EF012513): 5.38 cm4
  • Area of inertia Iz (EF012514): 9.02 cm4
  • Moment of resistance Wy (EF012503): 1.28 cm³
  • Moment of resistance Wz (EF012504): 0.25 cm³
  • Suitable for circuit integrity (EF007806): No
  • Material (EF002169): Steel
  • Surface protection (EF000139): Pre-galvanised
  • Weight (EF000167): 3.03 kg

More info

▲
Breakableno
CO2 Footprint (GWP) Cradle-to-Gate6,8549 kg CO2e / 1 Meter
Dimension3000x41x42
Dimension L3000 mm
Height42 mm
Hole size14x28 mm
Length3000 mm
Maintain electrical functionsno
MaterialSteel
Material thickness2 mm
Profile shapeC profile
Slot width22 mm
Static value A3,3 cm²
Static value ly5,38 cm⁴
Static value lz9,02 cm⁴
Static value Wy1,28 cm³
Static value Wz0,25 cm³
SurfaceStrip galvanized
Type of perforationPerforated bar
Version forDouble profile
Width41 mm
With toothingyes
