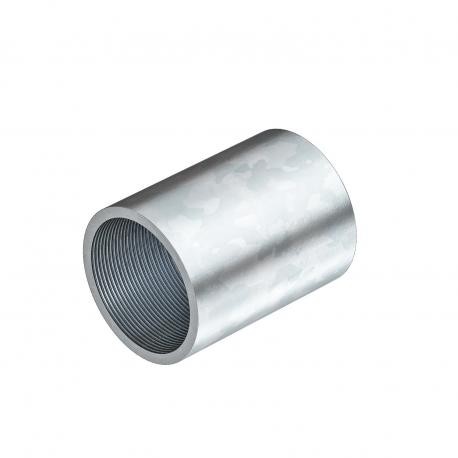

OBO BETTERMANN SVM50W G SVM50W G 2046880 OBO BETTERMANN Stapa threaded sleeve with thread, M50x1,5, Electrogalvanised, DIN 50961, St.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SVM50W G 2046880 OBO BETTERMANN Stapa threaded sleeve with thread, M50x1,5, Electrogalvanised, DIN 50961, St..

SVM50W G

2046880

OBO BETTERMANN

10 Pcs.

Stapa threaded sleeve with thread, M50x1,5, Electrogalvanised, DIN 50961, Steel, St Electrogalvanised steel sleeve, with thread. Accessory part: coupling with thread according to EN 60423 to connect electrical installation pipes and 90° bends.

Cables > Coupler for installation tubes
metal pipe

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Stapa threaded sleeve with thread intended for linking threaded electrical installation pipes securely within complex industrial infrastructure. This Obo Bettermann SVM50W G unit provides reliable fastening.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Brushed surface: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,6015 kg CO2e / 1 Piece
  • Dimension: M50x1,5
  • Dimension d: 50 mm
  • Dimension D: 53,5 mm
  • Dimension L: 54 mm
  • Dimension m (mm): M50
  • Dimension t: 2,5 mm
  • for pipe diameter: 50 mm
  • Halogen-free: no
  • Material: Steel
  • Permitted temperature range, max.: 400 °C
  • Permitted temperature range, min.: -45 °C
  • Polished surface: no
  • Size: 50
  • Surface: Electrogalvanized

More info

▲
Brushed surfaceno
CO2 Footprint (GWP) Cradle-to-Gate0,6015 kg CO2e / 1 Piece
DimensionM50x1,5
Dimension d50 mm
Dimension D53,5 mm
Dimension L54 mm
Dimension m (mm)M50
Dimension t2,5 mm
for pipe diameter50 mm
Halogen-freeno
MaterialSteel
Permitted temperature range, max.400 °C
Permitted temperature range, min.-45 °C
Polished surfaceno
Size50
SurfaceElectrogalvanized
ThreadM50x1,5
Two-partno
Version forThread
With inspection opening and lidno
