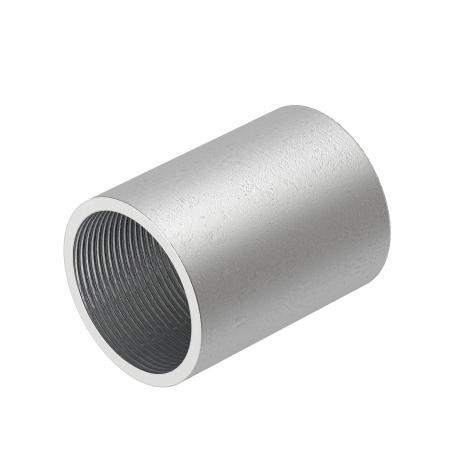

OBO BETTERMANN SVM50W DN SVM50W FT 2046559 OBO BETTERMANN Threaded steel sleeve , M50x1,5, Hot-dip galvanised, DIN EN ISO 1461, Steel.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SVM50W FT 2046559 OBO BETTERMANN Threaded steel sleeve , M50x1,5, Hot-dip galvanised, DIN EN ISO 1461, Steel..

SVM50W DN

2046559

OBO BETTERMANN

10 Pcs.

Threaded steel sleeve , M50x1,5, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Zinc-nickel coated steel sleeve, with thread. Accessory part: coupling with thread according to EN 60423 to connect electrical installation pipes and 90° bends.

Cables > Coupler for installation tubes
metal pipe

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Obo Bettermann SVM50W DN threaded steel sleeve creates strong, dependable mechanical joints between large M50 industrial conduits. Heavy-duty threaded sleeves are essential for maintaining structural continuity and earth bonding across extensive cable pathways.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Brushed surface: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,5859 kg CO2e / 1 Piece
  • Dimension: M50x1,5
  • Dimension d: 50 mm
  • Dimension D: 53,5 mm
  • Dimension L: 54 mm
  • Dimension m (mm): M50
  • Dimension t: 2,5 mm
  • for pipe diameter: 50 mm
  • Halogen-free: no
  • Length: 54 mm
  • Material: Steel
  • Permitted temperature range, max.: 400 °C
  • Permitted temperature range, min.: -45 °C
  • Polished surface: no
  • Size: 50

More info

▲
Brushed surfaceno
CO2 Footprint (GWP) Cradle-to-Gate0,5859 kg CO2e / 1 Piece
DimensionM50x1,5
Dimension d50 mm
Dimension D53,5 mm
Dimension L54 mm
Dimension m (mm)M50
Dimension t2,5 mm
for pipe diameter50 mm
Halogen-freeno
Length54 mm
MaterialSteel
Permitted temperature range, max.400 °C
Permitted temperature range, min.-45 °C
Polished surfaceno
Size50
SurfaceZinc / nickel coated
ThreadM50x1,5
Two-partno
Version forThread
With inspection opening and lidno
