SVM40W FT 2046558 OBO BETTERMANN Threaded steel sleeve , M40x1,5, Hot-dip galvanised, DIN EN ISO 1461, Steel..
SVM40W DN
2046558
OBO BETTERMANN
25 Pcs.

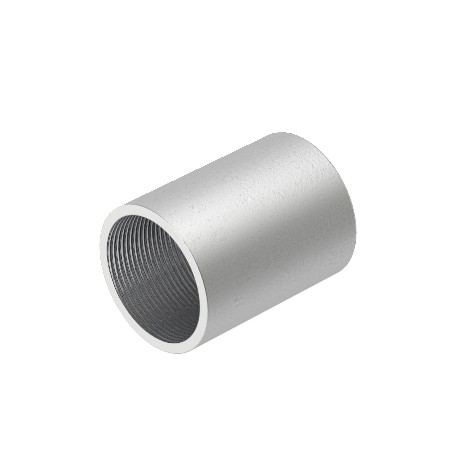

Threaded steel sleeve , M40x1,5, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
Zinc-nickel coated steel sleeve, with thread. Accessory part: coupling with thread according to EN 60423 to connect electrical installation pipes and 90° bends.
Cables > Coupler for installation tubes
metal pipe
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Obo Bettermann SVM40W FT threaded steel sleeve is manufactured for secure joining of threaded conduits, providing robust performance in demanding industrial installations.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Brushed surface: no
- CO2 Footprint (GWP) Cradle-to-Gate: 0,3596 kg CO2e / 1 Piece
- Dimension: M40x1,5
- Dimension d: 40 mm
- Dimension D: 43,5 mm
- Dimension L: 45 mm
- Dimension m (mm): M40
- Dimension t: 2,5 mm
- for pipe diameter: 40 mm
- Halogen-free: no
- Length: 45 mm
- Material: Steel
- Permitted temperature range, max.: 400 °C
- Permitted temperature range, min.: -45 °C
- Polished surface: no
- Size: 40
More info
▲| Brushed surface | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3596 kg CO2e / 1 Piece |
| Dimension | M40x1,5 |
| Dimension d | 40 mm |
| Dimension D | 43,5 mm |
| Dimension L | 45 mm |
| Dimension m (mm) | M40 |
| Dimension t | 2,5 mm |
| for pipe diameter | 40 mm |
| Halogen-free | no |
| Length | 45 mm |
| Material | Steel |
|---|---|
| Permitted temperature range, max. | 400 °C |
| Permitted temperature range, min. | -45 °C |
| Polished surface | no |
| Size | 40 |
| Surface | Zinc / nickel coated |
| Thread | M40x1,5 |
| Two-part | no |
| Version for | Thread |
| With inspection opening and lid | no |
