View larger
Images are for illustrative purposes only. Please refer to data sheet for details

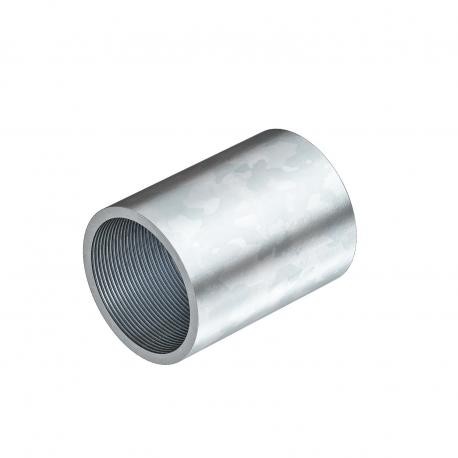

SVM20W G 2046876 OBO BETTERMANN Stapa threaded sleeve with thread, M20x1,5, Electrogalvanised, DIN 50961, St..
SVM20W G
2046876
OBO BETTERMANN
50 Pcs.
Stapa threaded sleeve with thread, M20x1,5, Electrogalvanised, DIN 50961, Steel, St
Electrogalvanised steel sleeve, with thread. Accessory part: coupling with thread according to EN 60423 to connect electrical installation pipes and 90° bends.
Cables > Coupler for installation tubes
metal pipe
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Brushed surface | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1865 kg CO2e / 1 Piece |
| Dimension | M20x1,5 |
| Dimension d | 20 mm |
| Dimension D | 22,5 mm |
| Dimension L | 30 mm |
| Dimension m (mm) | M20 |
| Dimension t | 2 mm |
| for pipe diameter | 20 mm |
| Halogen-free | no |
| Material | Steel |
|---|---|
| Permitted temperature range, max. | 400 °C |
| Permitted temperature range, min. | -45 °C |
| Polished surface | no |
| Size | 20 |
| Surface | Electrogalvanized |
| Thread | M20x1,5 |
| Two-part | no |
| Version for | Thread |
| With inspection opening and lid | no |
