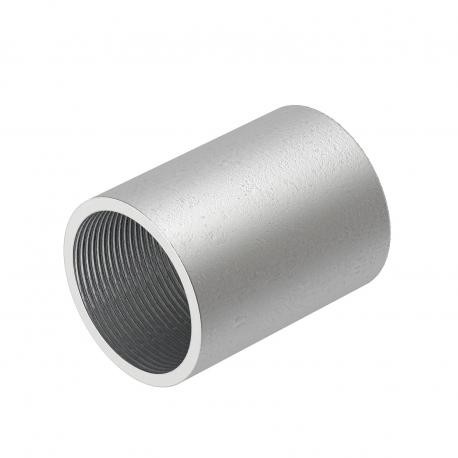

OBO BETTERMANN SVM16W DN SVM16W FT 2046553 OBO BETTERMANN Threaded steel sleeve , M16x1,5, Hot-dip galvanised, DIN EN ISO 1461, Steel.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SVM16W FT 2046553 OBO BETTERMANN Threaded steel sleeve , M16x1,5, Hot-dip galvanised, DIN EN ISO 1461, Steel..

SVM16W DN

2046553

OBO BETTERMANN

25 Pcs.

Threaded steel sleeve , M16x1,5, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Zinc-nickel coated steel sleeve, with thread. Accessory part: coupling with thread according to EN 60423 to connect electrical installation pipes and 90° bends.

Cables > Coupler for installation tubes
metal pipe

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A threaded steel sleeve such as the Obo Bettermann SVM16W FT provides a reliable hot-dip galvanized connection point for joining threaded conduit pipes in demanding industrial electrical networks. This durable component ensures excellent mechanical stability and grounding continuity. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Brushed surface: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,1493 kg CO2e / 1 Piece
  • Dimension: M16x1,5
  • Dimension d: 16 mm
  • Dimension D: 18,5 mm
  • Dimension L: 26 mm
  • Dimension m (mm): M16
  • Dimension t: 2 mm
  • for pipe diameter: 16 mm
  • Halogen-free: no
  • Length: 26 mm
  • Material: Steel
  • Permitted temperature range, max.: 400 °C
  • Permitted temperature range, min.: -45 °C
  • Polished surface: no
  • Size: 16

More info

▲
Brushed surfaceno
CO2 Footprint (GWP) Cradle-to-Gate0,1493 kg CO2e / 1 Piece
DimensionM16x1,5
Dimension d16 mm
Dimension D18,5 mm
Dimension L26 mm
Dimension m (mm)M16
Dimension t2 mm
for pipe diameter16 mm
Halogen-freeno
Length26 mm
MaterialSteel
Permitted temperature range, max.400 °C
Permitted temperature range, min.-45 °C
Polished surfaceno
Size16
SurfaceZinc / nickel coated
ThreadM16x1,5
Two-partno
Version forThread
With inspection opening and lidno
