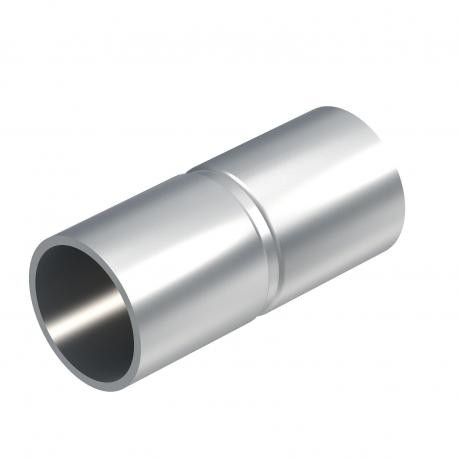

OBO BETTERMANN SV63W ALU SV63W ALU 2046028 OBO BETTERMANN Aluminium connection sleeve without thread, ø63mm, Aluminium, Alu View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SV63W ALU 2046028 OBO BETTERMANN Aluminium connection sleeve without thread, ø63mm, Aluminium, Alu

SV63W ALU

2046028

OBO BETTERMANN

20 Pcs.

Aluminium connection sleeve without thread, ø63mm, Aluminium, Alu SV63W ALU aluminum union sleeve, threadless Ø63mm Aluminum, Alu, Aluminium sleeve, without thread. Accessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.

Cables > Coupler for installation tubes
metal pipe

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An aluminium connection sleeve without thread designed to join unthreaded aluminium conduit pipes efficiently, reducing overall weight while maintaining structural integrity. Manufactured by Obo Bettermann as part number SV63W ALU.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Brushed surface: no
  • Dimension: Ø63mm
  • Dimension D: 66,2 mm
  • Dimension d: 63,2 mm
  • Dimension L: 110 mm
  • Dimension l: 55 mm
  • Dimension t: 1,5 mm
  • for pipe diameter: 63 mm
  • Halogen-free: yes
  • Length: 110 mm
  • Material: Aluminium
  • Permitted temperature range, max.: 250 °C
  • Permitted temperature range, min.: -45 °C
  • Polished surface: no
  • Size: 63
  • Two-part: no

More info

▲
Brushed surfaceno
DimensionØ63mm
Dimension D66,2 mm
Dimension d63,2 mm
Dimension L110 mm
Dimension l55 mm
Dimension t1,5 mm
for pipe diameter63 mm
Halogen-freeyes
Length110 mm
MaterialAluminium
Permitted temperature range, max.250 °C
Permitted temperature range, min.-45 °C
Polished surfaceno
Size63
Two-partno
Version forConnector
With inspection opening and lidno
