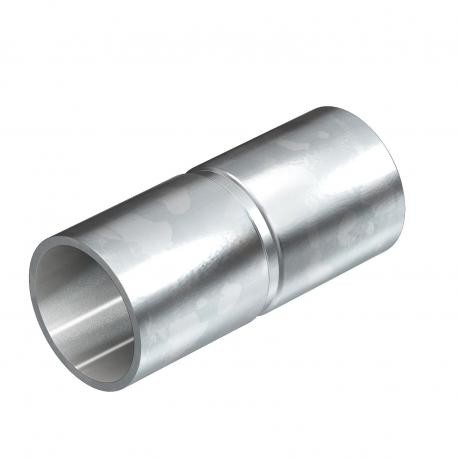

OBO BETTERMANN SV32W G SV32W G 2046857 OBO BETTERMANN Stapa plug-in sleeve without thread, Ø32mm, Electrogalvanised, DIN 50961, Ste.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SV32W G 2046857 OBO BETTERMANN Stapa plug-in sleeve without thread, Ø32mm, Electrogalvanised, DIN 50961, Ste..

SV32W G

2046857

OBO BETTERMANN

50 Pcs.

Stapa plug-in sleeve without thread, Ø32mm, Electrogalvanised, DIN 50961, Steel, St Electrogalvanised steel sleeve, without thread. Accessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.

Cables > Coupler for installation tubes
metal pipe

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An electrogalvanised Stapa plug-in sleeve without thread, the Obo Bettermann SV32W G facilitates straightforward coupling of 32mm smooth installation pipes. These components maintain secure joints along cable routes inside commercial and industrial buildings.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Brushed surface: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,1814 kg CO2e / 1 Piece
  • Dimension: Ø32mm
  • Dimension D: 35,2 mm
  • Dimension d: 32,8 mm
  • Dimension L: 70 mm
  • Dimension l: 35 mm
  • Dimension m (mm): M32
  • Dimension t: 1,2 mm
  • for pipe diameter: 32 mm
  • Halogen-free: yes
  • Length: 70 mm
  • Material: Steel
  • Permitted temperature range, max.: 400 °C
  • Permitted temperature range, min.: -45 °C
  • Polished surface: no

More info

▲
Brushed surfaceno
CO2 Footprint (GWP) Cradle-to-Gate0,1814 kg CO2e / 1 Piece
DimensionØ32mm
Dimension D35,2 mm
Dimension d32,8 mm
Dimension L70 mm
Dimension l35 mm
Dimension m (mm)M32
Dimension t1,2 mm
for pipe diameter32 mm
Halogen-freeyes
Length70 mm
MaterialSteel
Permitted temperature range, max.400 °C
Permitted temperature range, min.-45 °C
Polished surfaceno
Size32
SurfaceElectrogalvanized
Two-partno
Version forConnector
With inspection opening and lidno
