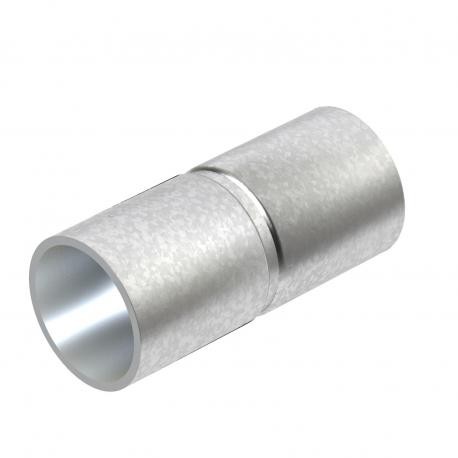

OBO BETTERMANN SV32W FT SV32W FT 2046623 OBO BETTERMANN Plug-in steel sleeve , Ø32mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SV32W FT 2046623 OBO BETTERMANN Plug-in steel sleeve , Ø32mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St

SV32W FT

2046623

OBO BETTERMANN

50 Pcs.

Plug-in steel sleeve , Ø32mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Hot-dip galvanised steel sleeve, without thread. Accessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.

Cables > Coupler for installation tubes
metal pipe

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for heavy-duty applications, the Obo Bettermann SV32W FT plug-in steel sleeve features a hot-dip galvanized finish to securely connect unthreaded metal conduit runs in harsh environments. This robust coupling maintains structural alignment and physical protection for cables. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Brushed surface: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,2804 kg CO2e / 1 Piece
  • Dimension: Ø32mm
  • Dimension d: 32,8 mm
  • Dimension D: 35,2 mm
  • Dimension L: 70 mm
  • Dimension l: 35 mm
  • Dimension m (mm): M32
  • Dimension t: 1,2 mm
  • for pipe diameter: 32 mm
  • Halogen-free: yes
  • Length: 70 mm
  • Material: Steel
  • Permitted temperature range, max.: 400 °C
  • Permitted temperature range, min.: -45 °C
  • Polished surface: no

More info

▲
Brushed surfaceno
CO2 Footprint (GWP) Cradle-to-Gate0,2804 kg CO2e / 1 Piece
DimensionØ32mm
Dimension d32,8 mm
Dimension D35,2 mm
Dimension L70 mm
Dimension l35 mm
Dimension m (mm)M32
Dimension t1,2 mm
for pipe diameter32 mm
Halogen-freeyes
Length70 mm
MaterialSteel
Permitted temperature range, max.400 °C
Permitted temperature range, min.-45 °C
Polished surfaceno
Size32
SurfaceHot-dip galvanised
Two-partno
Version forConnector
With inspection opening and lidno
