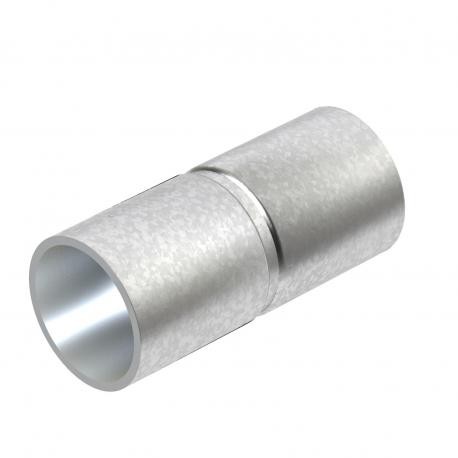

OBO BETTERMANN SV25W FT SV25W FT 2046622 OBO BETTERMANN Plug-in steel sleeve , Ø25mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SV25W FT 2046622 OBO BETTERMANN Plug-in steel sleeve , Ø25mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St

SV25W FT

2046622

OBO BETTERMANN

50 Pcs.

Plug-in steel sleeve , Ø25mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Hot-dip galvanised steel sleeve, without thread. Accessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.

Cables > Coupler for installation tubes
metal pipe

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built for durability, the Obo Bettermann SV25W FT plug-in steel sleeve features a hot-dip galvanised finish designed to connect 25mm plain steel pipes in demanding industrial environments. Galvanized steel sleeves protect joints against heavy corrosion and mechanical stress.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Brushed surface: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,1363 kg CO2e / 1 Piece
  • Dimension: Ø25mm
  • Dimension D: 28,1 mm
  • Dimension d: 25,7 mm
  • Dimension l: 30 mm
  • Dimension L: 60 mm
  • Dimension m (mm): M25
  • Dimension t: 1,2 mm
  • for pipe diameter: 25 mm
  • Halogen-free: yes
  • Length: 60 mm
  • Material: Steel
  • Permitted temperature range, max.: 400 °C
  • Permitted temperature range, min.: -45 °C
  • Polished surface: no

More info

▲
Brushed surfaceno
CO2 Footprint (GWP) Cradle-to-Gate0,1363 kg CO2e / 1 Piece
DimensionØ25mm
Dimension D28,1 mm
Dimension d25,7 mm
Dimension l30 mm
Dimension L60 mm
Dimension m (mm)M25
Dimension t1,2 mm
for pipe diameter25 mm
Halogen-freeyes
Length60 mm
MaterialSteel
Permitted temperature range, max.400 °C
Permitted temperature range, min.-45 °C
Polished surfaceno
Size25
SurfaceHot-dip galvanised
Two-partno
Version forConnector
With inspection opening and lidno
