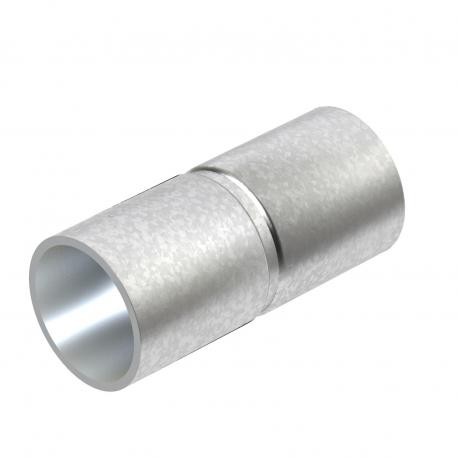

OBO BETTERMANN SV16W FT SV16W FT 2046620 OBO BETTERMANN Plug-in steel sleeve , Ø16mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SV16W FT 2046620 OBO BETTERMANN Plug-in steel sleeve , Ø16mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St

SV16W FT

2046620

OBO BETTERMANN

25 Pcs.

Plug-in steel sleeve , Ø16mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Hot-dip galvanised steel sleeve, without thread. Accessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.

Cables > Coupler for installation tubes
metal pipe

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Obo Bettermann SV16W FT plug-in steel sleeve is a hot-dip galvanised component used to effortlessly connect protective metal pipes in diverse electrical conduit applications.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Brushed surface: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0795 kg CO2e / 1 Piece
  • Dimension: Ø16mm
  • Dimension d: 16,6 mm
  • Dimension D: 18,6 mm
  • Dimension L: 50 mm
  • Dimension l: 25 mm
  • Dimension m (mm): M16
  • Dimension t: 1 mm
  • for pipe diameter: 16 mm
  • Halogen-free: yes
  • Length: 50 mm
  • Material: Steel
  • Permitted temperature range, max.: 400 °C
  • Permitted temperature range, min.: -45 °C
  • Polished surface: no

More info

▲
Brushed surfaceno
CO2 Footprint (GWP) Cradle-to-Gate0,0795 kg CO2e / 1 Piece
DimensionØ16mm
Dimension d16,6 mm
Dimension D18,6 mm
Dimension L50 mm
Dimension l25 mm
Dimension m (mm)M16
Dimension t1 mm
for pipe diameter16 mm
Halogen-freeyes
Length50 mm
MaterialSteel
Permitted temperature range, max.400 °C
Permitted temperature range, min.-45 °C
Polished surfaceno
Size16
SurfaceHot-dip galvanised
Two-partno
Version forConnector
With inspection opening and lidno
