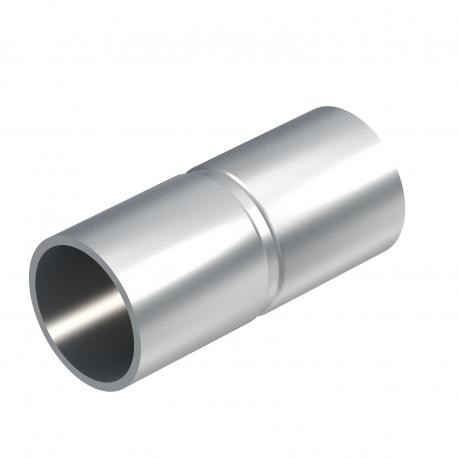

OBO BETTERMANN SV16W ALU SV16W ALU 2046022 OBO BETTERMANN Aluminium connection sleeve without thread, ø16mm, Aluminium, Alu View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SV16W ALU 2046022 OBO BETTERMANN Aluminium connection sleeve without thread, ø16mm, Aluminium, Alu

SV16W ALU

2046022

OBO BETTERMANN

50 Pcs.

Aluminium connection sleeve without thread, ø16mm, Aluminium, Alu Aluminium sleeve, without thread. Accessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.

Cables > Coupler for installation tubes
metal pipe

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An aluminium connection sleeve without thread, part number SV16W ALU by Obo Bettermann, is utilized to join and align smooth installation pipes within electrical routing networks. It maintains secure mechanical continuity across building management systems and industrial machinery wiring.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Brushed surface: no
  • Dimension: Ø16mm
  • Dimension d: 16,2 mm
  • Dimension D: 18,6 mm
  • Dimension l: 20 mm
  • Dimension L: 40 mm
  • Dimension t: 1,2 mm
  • for pipe diameter: 16 mm
  • Halogen-free: yes
  • Length: 40 mm
  • Material: Aluminium
  • Permitted temperature range, max.: 250 °C
  • Permitted temperature range, min.: -45 °C
  • Polished surface: no
  • Size: 16
  • Two-part: no

More info

▲
Brushed surfaceno
DimensionØ16mm
Dimension d16,2 mm
Dimension D18,6 mm
Dimension l20 mm
Dimension L40 mm
Dimension t1,2 mm
for pipe diameter16 mm
Halogen-freeyes
Length40 mm
MaterialAluminium
Permitted temperature range, max.250 °C
Permitted temperature range, min.-45 °C
Polished surfaceno
Size16
Two-partno
Version forConnector
With inspection opening and lidno

Product Datasheet
