OBO BETTERMANN SM63W G SM63W G 2046867 OBO BETTERMANN Stapa threaded pipe with threaded sleeve, M63x1,5,3000, Electrogalvanised, DI.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SM63W G 2046867 OBO BETTERMANN Stapa threaded pipe with threaded sleeve, M63x1,5,3000, Electrogalvanised, DI..

SM63W G

2046867

OBO BETTERMANN

9 m.

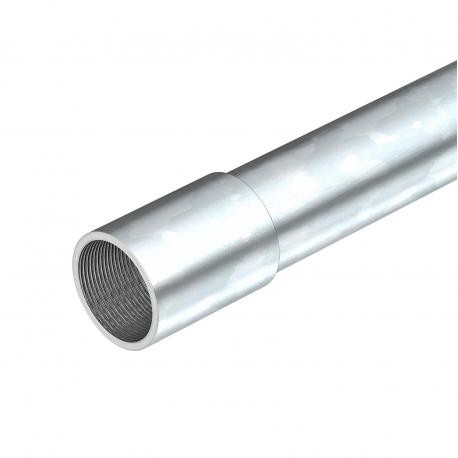

Stapa threaded pipe with threaded sleeve, M63x1,5,3000, Electrogalvanised, DIN 50961, Steel, St Electrogalvanised steel pipe, with thread. Electrical installation pipe according to EN 61386-1 with threaded ends to EN 60423 for mechanical protection of cables. With burr-free inner wall. One coupling is already screwed onto each pipe.

Cables > Metal installation tube
metal pipe

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Stapa threaded pipe with threaded sleeve, designated as part number SM63W G by Obo Bettermann, is engineered to provide secure mechanical protection and structured routing for cables in commercial and industrial electrical systems. These rigid metal conduits ensure reliable performance across complex distribution networks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Brushed surface: no
  • Cavity wall installation: yes
  • Classification code: 55571
  • CO2 Footprint (GWP) Cradle-to-Gate: 5,9307 kg CO2e / 1 Meter
  • Concealed: yes
  • Concrete installation: yes
  • Connection 1, installation pipe: Sleeve
  • Connection 2, installation pipe: External thread (metric)
  • Dimension: M63x1,7,3000
  • Dimension D: 63 mm
  • Dimension L: 3000 mm
  • Dimension l: 25 mm
  • Dimension m (mm): M63
  • Dimension t: 1,7 mm
  • External diameter: 63 mm
  • Installation in the earth: no

More info

▲
Brushed surfaceno
Cavity wall installationyes
Classification code55571
CO2 Footprint (GWP) Cradle-to-Gate5,9307 kg CO2e / 1 Meter
Concealedyes
Concrete installationyes
Connection 1, installation pipeSleeve
Connection 2, installation pipeExternal thread (metric)
DimensionM63x1,7,3000
Dimension D63 mm
Dimension L3000 mm
Dimension l25 mm
Dimension m (mm)M63
Dimension t1,7 mm
External diameter63 mm
Installation in the earthno
Installation on woodyes
Installation outdoorsno
Length3000 mm
Machines and system installationno
MaterialSteel
Permitted temperature range, max.400 °C
Permitted temperature range, min.-45 °C
Pipe versionRigid with thread
Polished surfaceno
SurfaceElectrogalvanized
Surface-mountedyes
ThreadM63x1,5
Underfloor installation (bitumen, hot asphalt)yes
Underfloor installation (screed)yes
With sleeveyes

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
