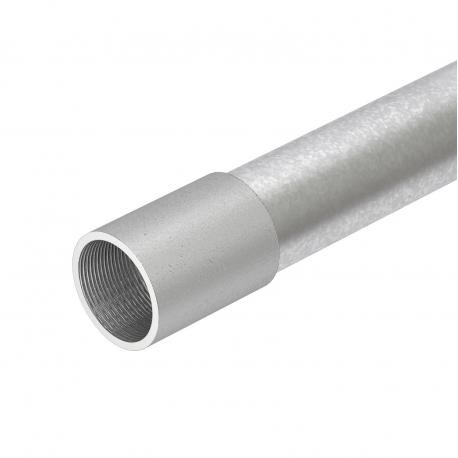

SM63W FT 2046540 OBO BETTERMANN Threaded steel pipe with threaded sleeve, M63, 3000mm, Hot-dip galvanised, D..
SM63W FT
2046540
OBO BETTERMANN
9 m.
Threaded steel pipe with threaded sleeve, M63, 3000mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
Hot-dip galvanised steel pipe, with thread. Electrical installation pipe according to EN 61386-1 with threaded ends to EN 60423 for mechanical protection of cables. With burr-free inner wall. Corrosion protection class 4 (high). One coupling is already screwed onto each pipe.
Cables > Metal installation tube
metal pipe
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Brushed surface | no |
|---|---|
| Cavity wall installation | yes |
| Classification code | 55571 |
| CO2 Footprint (GWP) Cradle-to-Gate | 6,7676 kg CO2e / 1 Meter |
| Concealed | yes |
| Concrete installation | yes |
| Connection 1, installation pipe | Sleeve |
| Connection 2, installation pipe | External thread (metric) |
| Dimension | M63, 3000mm |
| Dimension D | 63 mm |
| Dimension L | 3000 mm |
| Dimension l | 26 mm |
| Dimension m (mm) | M63 |
| Dimension t | 1,8 mm |
| External diameter | 63 mm |
| Installation in the earth | yes |
| Installation on wood | yes |
|---|---|
| Installation outdoors | yes |
| Length | 3000 mm |
| Machines and system installation | yes |
| Material | Steel |
| Permitted temperature range, max. | 400 °C |
| Permitted temperature range, min. | -45 °C |
| Pipe version | Rigid with thread |
| Polished surface | no |
| Surface | Hot-dip galvanised |
| Surface-mounted | yes |
| Thread | M63x1,5 |
| Underfloor installation (bitumen, hot asphalt) | yes |
| Underfloor installation (screed) | yes |
| With sleeve | yes |
