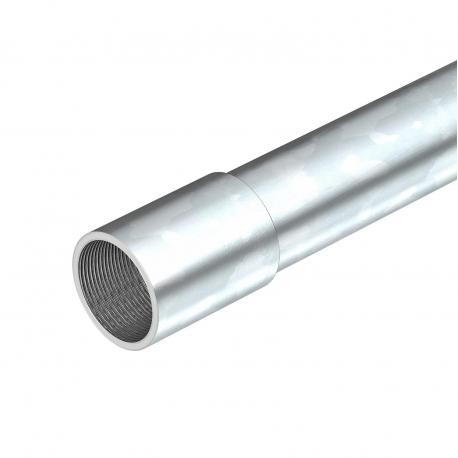

SM40W G 2046865 OBO BETTERMANN Stapa threaded pipe with threaded sleeve, M40x1,5,3000, Electrogalvanised, DI..
SM40W G
2046865
OBO BETTERMANN
15 m.
Cables > Metal installation tube
metal pipe
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Part number SM40W G by Obo Bettermann is a Stapa threaded pipe equipped with a threaded sleeve, designed to facilitate secure and rigid cable routing in commercial electrical infrastructures. It offers dependable mechanical shielding for power and data lines.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Brushed surface: no
- Cavity wall installation: yes
- Classification code: 55571
- CO2 Footprint (GWP) Cradle-to-Gate: 2,8037 kg CO2e / 1 Meter
- Concealed: yes
- Concrete installation: yes
- Connection 1, installation pipe: Sleeve
- Connection 2, installation pipe: External thread (metric)
- Dimension: M40x1,5,3000
- Dimension D: 40 mm
- Dimension l: 20,5 mm
- Dimension L: 3000 mm
- Dimension m (mm): M40
- Dimension t: 1,5 mm
- External diameter: 40 mm
- Installation in the earth: no
More info
▲| Brushed surface | no |
|---|---|
| Cavity wall installation | yes |
| Classification code | 55571 |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,8037 kg CO2e / 1 Meter |
| Concealed | yes |
| Concrete installation | yes |
| Connection 1, installation pipe | Sleeve |
| Connection 2, installation pipe | External thread (metric) |
| Dimension | M40x1,5,3000 |
| Dimension D | 40 mm |
| Dimension l | 20,5 mm |
| Dimension L | 3000 mm |
| Dimension m (mm) | M40 |
| Dimension t | 1,5 mm |
| External diameter | 40 mm |
| Installation in the earth | no |
| Installation on wood | yes |
|---|---|
| Installation outdoors | no |
| Length | 3000 mm |
| Machines and system installation | no |
| Material | Steel |
| Permitted temperature range, max. | 400 °C |
| Permitted temperature range, min. | -45 °C |
| Pipe version | Rigid with thread |
| Polished surface | no |
| Surface | Electrogalvanized |
| Surface-mounted | yes |
| Thread | M40x1,5 |
| Underfloor installation (bitumen, hot asphalt) | yes |
| Underfloor installation (screed) | yes |
| With sleeve | yes |
