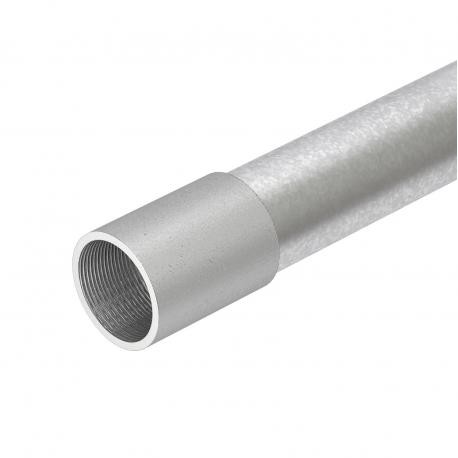

OBO BETTERMANN SM40W FT SM40W FT 2046537 OBO BETTERMANN Threaded steel pipe with threaded sleeve, M40, 3000mm, Hot-dip galvanised, D.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SM40W FT 2046537 OBO BETTERMANN Threaded steel pipe with threaded sleeve, M40, 3000mm, Hot-dip galvanised, D..

SM40W FT

2046537

OBO BETTERMANN

15 m.

Threaded steel pipe with threaded sleeve, M40, 3000mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Hot-dip galvanised steel pipe, with thread. Electrical installation pipe according to EN 61386-1 with threaded ends to EN 60423 for mechanical protection of cables. With burr-free inner wall. Corrosion protection class 4 (high). One coupling is already screwed onto each pipe.

Cables > Metal installation tube
metal pipe

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Obo Bettermann SM40W FT is a threaded steel pipe with a threaded sleeve designed to protect heavy-duty electrical wiring networks. Robust threaded conduits offer superior shielding for industrial cable runs deployed underground or in concrete. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Brushed surface: no
  • Cavity wall installation: yes
  • Classification code: 55571
  • CO2 Footprint (GWP) Cradle-to-Gate: 3,3298 kg CO2e / 1 Meter
  • Concealed: yes
  • Concrete installation: yes
  • Connection 1, installation pipe: Sleeve
  • Connection 2, installation pipe: External thread (metric)
  • Dimension: M40, 3000mm
  • Dimension D: 40 mm
  • Dimension L: 3000 mm
  • Dimension l: 20,5 mm
  • Dimension m (mm): M40
  • Dimension t: 1,5 mm
  • External diameter: 40 mm
  • Installation in the earth: yes

More info

▲
Brushed surfaceno
Cavity wall installationyes
Classification code55571
CO2 Footprint (GWP) Cradle-to-Gate3,3298 kg CO2e / 1 Meter
Concealedyes
Concrete installationyes
Connection 1, installation pipeSleeve
Connection 2, installation pipeExternal thread (metric)
DimensionM40, 3000mm
Dimension D40 mm
Dimension L3000 mm
Dimension l20,5 mm
Dimension m (mm)M40
Dimension t1,5 mm
External diameter40 mm
Installation in the earthyes
Installation on woodyes
Installation outdoorsyes
Length3000 mm
Machines and system installationyes
MaterialSteel
Permitted temperature range, max.400 °C
Permitted temperature range, min.-45 °C
Pipe versionRigid with thread
Polished surfaceno
SurfaceHot-dip galvanised
Surface-mountedyes
ThreadM40x1,5
Underfloor installation (bitumen, hot asphalt)yes
Underfloor installation (screed)yes
With sleeveyes
