SM25W G 2046863 OBO BETTERMANN Stapa threaded pipe with threaded sleeve, M25x1,5,3000, Electrogalvanised, DI..
SM25W G
2046863
OBO BETTERMANN
30 m.
Cables > Metal installation tube
metal pipe
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

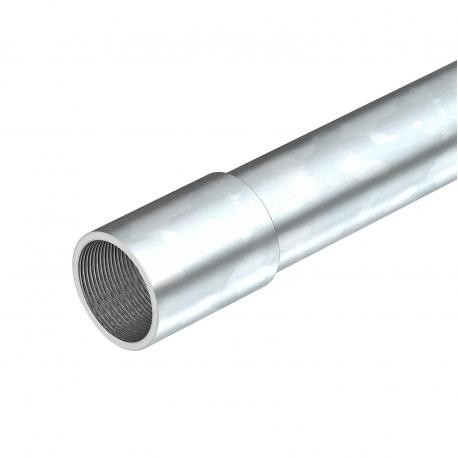

The Obo Bettermann SM25W G is a Stapa threaded pipe with threaded sleeve utilized for dependable cable routing and mechanical protection. Steel conduits provide structured support and safeguard electrical conductors inside walls and ceiling voids. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Brushed surface: no
- Cavity wall installation: yes
- Classification code: 55571
- CO2 Footprint (GWP) Cradle-to-Gate: 1,7298 kg CO2e / 1 Meter
- Concealed: yes
- Concrete installation: yes
- Connection 1, installation pipe: Sleeve
- Connection 2, installation pipe: External thread (metric)
- Dimension: M25x1,5,3000
- Dimension D: 25 mm
- Dimension L: 3000 mm
- Dimension l: 18 mm
- Dimension m (mm): M25
- Dimension t: 1,5 mm
- External diameter: 25 mm
- Installation in the earth: no
More info
▲| Brushed surface | no |
|---|---|
| Cavity wall installation | yes |
| Classification code | 55571 |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,7298 kg CO2e / 1 Meter |
| Concealed | yes |
| Concrete installation | yes |
| Connection 1, installation pipe | Sleeve |
| Connection 2, installation pipe | External thread (metric) |
| Dimension | M25x1,5,3000 |
| Dimension D | 25 mm |
| Dimension L | 3000 mm |
| Dimension l | 18 mm |
| Dimension m (mm) | M25 |
| Dimension t | 1,5 mm |
| External diameter | 25 mm |
| Installation in the earth | no |
|---|---|
| Installation on wood | yes |
| Installation outdoors | no |
| Length | 3000 mm |
| Machines and system installation | no |
| Material | Steel |
| Permitted temperature range, max. | 400 °C |
| Permitted temperature range, min. | -45 °C |
| Pipe version | Rigid with thread |
| Polished surface | no |
| Surface | Electrogalvanized |
| Surface-mounted | yes |
| Thread | M25x1,5 |
| Underfloor installation (bitumen, hot asphalt) | yes |
| Underfloor installation (screed) | yes |
