View larger
Images are for illustrative purposes only. Please refer to data sheet for details

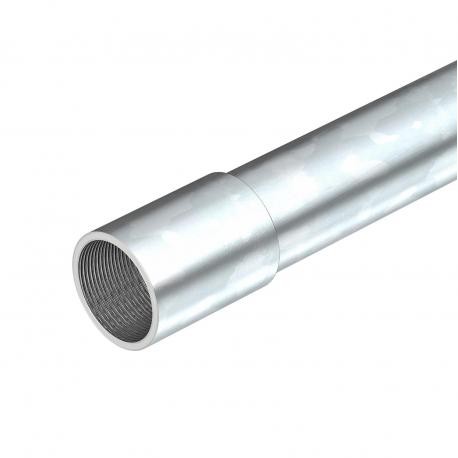

SM16W G 2046861 OBO BETTERMANN Stapa threaded pipe with threaded sleeve, M16x1,5,3000, Electrogalvanised, DI..
SM16W G
2046861
OBO BETTERMANN
30 m.
Stapa threaded pipe with threaded sleeve, M16x1,5,3000, Electrogalvanised, DIN 50961, Steel, St
Electrogalvanised steel pipe, with thread. Electrical installation pipe according to EN 61386-1 with threaded ends to EN 60423 for mechanical protection of cables. With burr-free inner wall. One coupling is already screwed onto each pipe.
Cables > Metal installation tube
metal pipe
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Brushed surface | no |
|---|---|
| Cavity wall installation | yes |
| Classification code | 55571 |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,1227 kg CO2e / 1 Meter |
| Concealed | yes |
| Concrete installation | yes |
| Connection 1, installation pipe | Sleeve |
| Connection 2, installation pipe | External thread (metric) |
| Dimension | M16x1,3,3000 |
| Dimension D | 16 mm |
| Dimension L | 3000 mm |
| Dimension l | 13 mm |
| Dimension m (mm) | M16 |
| Dimension t | 1,3 mm |
| External diameter | 16 mm |
| Installation in the earth | no |
| Installation on wood | yes |
|---|---|
| Installation outdoors | no |
| Length | 3000 mm |
| Machines and system installation | no |
| Material | Steel |
| Permitted temperature range, max. | 400 °C |
| Permitted temperature range, min. | -45 °C |
| Pipe version | Rigid with thread |
| Polished surface | no |
| Surface | Electrogalvanized |
| Surface-mounted | yes |
| Thread | M16x1,5 |
| Underfloor installation (bitumen, hot asphalt) | yes |
| Underfloor installation (screed) | yes |
| With sleeve | yes |
