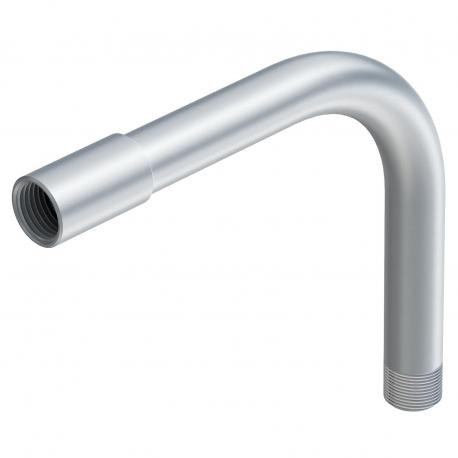

SBM63W ALU 2046048 OBO BETTERMANN Aluminium pipe bend with thread, M63x1,5, Aluminium, Alu
SBM63W ALU
2046048
OBO BETTERMANN
3 Pcs.
Cables > Bend for installation tubes
metal pipe
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for lightweight yet durable performance, this Obo Bettermann SBM63W ALU aluminium pipe bend with thread connects M63 metric conduit networks seamlessly. Threaded aluminum pipe bends allow secure mechanical integration while accommodating complex directional changes in industrial cabling.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Angle of the bend: 90 °
- Brushed surface: no
- Dimension: M63x1,5
- Dimension A: 135 mm
- Dimension B: 423 mm
- Dimension D: 63 mm
- Dimension l: 25 mm
- Dimension m (mm): M63
- Dimension R: 256,5 mm
- Dimension t: 2,1 mm
- Flexible: no
- For nominal pipe diameter: 63 mm
- Halogen-free: no
- Material: Aluminium
- Permitted temperature range, max.: 250 °C
- Permitted temperature range, min.: -45 °C
More info
▲| Angle of the bend | 90 ° |
|---|---|
| Brushed surface | no |
| Dimension | M63x1,5 |
| Dimension A | 135 mm |
| Dimension B | 423 mm |
| Dimension D | 63 mm |
| Dimension l | 25 mm |
| Dimension m (mm) | M63 |
| Dimension R | 256,5 mm |
| Dimension t | 2,1 mm |
| Flexible | no |
| For nominal pipe diameter | 63 mm |
|---|---|
| Halogen-free | no |
| Material | Aluminium |
| Permitted temperature range, max. | 250 °C |
| Permitted temperature range, min. | -45 °C |
| Polished surface | no |
| Thread | M63x1,5 |
| Two-part | no |
| Version for | Thread |
| With inspection opening and lid | no |
| With sleeve | yes |
