View larger
Images are for illustrative purposes only. Please refer to data sheet for details

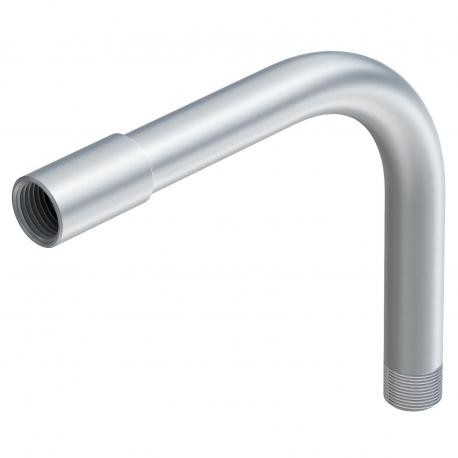

SBM25W ALU 2046044 OBO BETTERMANN Aluminium pipe bend with thread, M25x1,5, Aluminium, Alu
SBM25W ALU
2046044
OBO BETTERMANN
25 Pcs.
Aluminium pipe bend with thread, M25x1,5, Aluminium, Alu
SBM25W ALU aluminum tube bend, with M25x1.5 thread Aluminum, Alu,
Aluminum tube bend, with thread. 90° elbow for electrical installation pipes according to EN 61386-1 with threaded ends according to DIN EN 60423. With burr-free interior wall. Each curve includes a pre-threaded union sleeve.
Cables > Bend for installation tubes
metal pipe
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
90° bend for electrical installation pipes according to en 61386-1 with threaded ends to DIN en 60423. With burr-free inner wall.
One connection sleeve is already screwed onto each pipe bend.
One connection sleeve is already screwed onto each pipe bend.
| Feature Name | Feature Value |
|---|---|
| Material (EF002169) | Metal |
| Material quality (EF001257) | Aluminium |
| Surface polished (EF006437) | No |
| Surface brushed (EF008705) | No |
| Halogen free (EF000025) | No |
| For nominal tube diameter (EF006302) | 25 mm |
| Model (EF000010) | Thread |
| With sleeve (EF006023) | Yes |
| Two-part (EF001590) | No |
| With inspection opening and cover (EF009760) | No |
| Flexible (EF000083) | No |
| Bend angle (EF005431) | 90 ° |
