View larger
Images are for illustrative purposes only. Please refer to data sheet for details

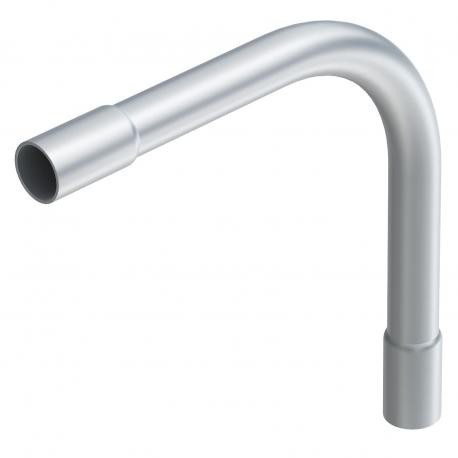

SB40W ALU 2046016 OBO BETTERMANN Aluminium pipe bend without thread, ø40mm, Aluminium, Alu
SB40W ALU
2046016
OBO BETTERMANN
15 Pcs.
Aluminium pipe bend without thread, ø40mm, Aluminium, Alu
Aluminium pipe bend, without thread. 90° bend with moulded sleeves, for electrical installation pipes according to EN 61386-1. With burr-free inner wall.
Cables > Bend for installation tubes
metal pipe
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Angle of the bend | 90 ° |
|---|---|
| Brushed surface | no |
| Dimension | Ø40mm |
| Dimension A | 115 mm |
| Dimension B | 302 mm |
| Dimension D | 40,2 mm |
| Dimension l | 50 mm |
| Dimension m (mm) | M40 |
| Dimension R | 145 mm |
| Dimension t | 1,4 mm |
| Flexible | no |
| For nominal pipe diameter | 40 mm |
|---|---|
| Halogen-free | no |
| Material | Aluminium |
| Permitted temperature range, max. | 250 °C |
| Permitted temperature range, min. | -45 °C |
| Polished surface | no |
| Two-part | no |
| Version for | Connector |
| With inspection opening and lid | no |
| With sleeve | yes |
