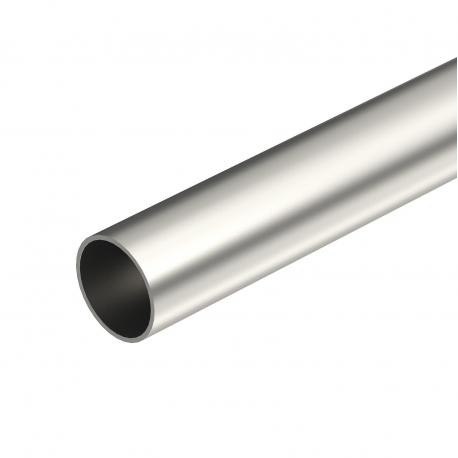

S63W V2A 2046726 OBO BETTERMANN Stainless steel pipe without thread, ø63, 3000mm, Stainless steel, grade 304..
S63W A2
2046726
OBO BETTERMANN
9 m.
Cables > Metal installation tube
metal pipe
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Obo Bettermann S63W A2 is a stainless steel pipe without thread applied for extensive electrical cable protection in corrosive environments. Premium stainless steel conduits ensure long-lasting durability for outdoor and buried wiring networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Brushed surface: yes
- Cavity wall installation: yes
- Classification code: 55571
- CO2 Footprint (GWP) Cradle-to-Gate: 3,6542 kg CO2e / 1 Meter
- Concealed: yes
- Concrete installation: yes
- Connection 1, installation pipe: Pipe end
- Connection 2, installation pipe: Pipe end
- Dimension: Ø63, 3000mm
- Dimension D: 63 mm
- Dimension L: 3000 mm
- Dimension m (mm): M63
- Dimension t: 1,5 mm
- Installation in the earth: yes
- Installation on wood: yes
- Installation outdoors: yes
More info
▲| Brushed surface | yes |
|---|---|
| Cavity wall installation | yes |
| Classification code | 55571 |
| CO2 Footprint (GWP) Cradle-to-Gate | 3,6542 kg CO2e / 1 Meter |
| Concealed | yes |
| Concrete installation | yes |
| Connection 1, installation pipe | Pipe end |
| Connection 2, installation pipe | Pipe end |
| Dimension | Ø63, 3000mm |
| Dimension D | 63 mm |
| Dimension L | 3000 mm |
| Dimension m (mm) | M63 |
| Dimension t | 1,5 mm |
| Installation in the earth | yes |
| Installation on wood | yes |
|---|---|
| Installation outdoors | yes |
| Length | 3000 mm |
| Machines and system installation | yes |
| Material | Stainless steel 1.4301 |
| Permitted temperature range, max. | 400 °C |
| Permitted temperature range, min. | -45 °C |
| Pipe version | Rigid without thread |
| Polished surface | no |
| Surface | Bright, treated |
| Surface-mounted | yes |
| Underfloor installation (bitumen, hot asphalt) | yes |
| Underfloor installation (screed) | yes |
| With sleeve | no |
