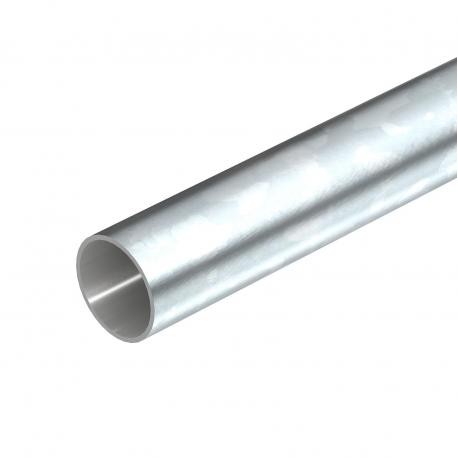

S63W G 2046846 OBO BETTERMANN Stapa plug-in pipe without thread, ø63, 3000mm, Electrogalvanised, DIN 50961, ..
S63W G
2046846
OBO BETTERMANN
9 m.
Cables > Metal installation tube
metal pipe
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann S63W G is a Stapa plug-in pipe without thread designed to route and safeguard electrical cables across commercial buildings and industrial plants. Electrogalvanized steel piping provides reliable structural defense for internal wiring runs. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Brushed surface: no
- Cavity wall installation: yes
- Classification code: 44571
- CO2 Footprint (GWP) Cradle-to-Gate: 4,2397 kg CO2e / 1 Meter
- Concealed: yes
- Concrete installation: yes
- Connection 1, installation pipe: Pipe end
- Connection 2, installation pipe: Pipe end
- Dimension: Ø63, 3000mm
- Dimension D: 63 mm
- Dimension L: 3000 mm
- Dimension m (mm): M63
- Dimension t: 1,2 mm
- External diameter: 63 mm
- Installation in the earth: no
- Installation on wood: yes
More info
▲| Brushed surface | no |
|---|---|
| Cavity wall installation | yes |
| Classification code | 44571 |
| CO2 Footprint (GWP) Cradle-to-Gate | 4,2397 kg CO2e / 1 Meter |
| Concealed | yes |
| Concrete installation | yes |
| Connection 1, installation pipe | Pipe end |
| Connection 2, installation pipe | Pipe end |
| Dimension | Ø63, 3000mm |
| Dimension D | 63 mm |
| Dimension L | 3000 mm |
| Dimension m (mm) | M63 |
| Dimension t | 1,2 mm |
| External diameter | 63 mm |
| Installation in the earth | no |
| Installation on wood | yes |
|---|---|
| Installation outdoors | no |
| Length | 3000 mm |
| Machines and system installation | no |
| Material | Steel |
| Permitted temperature range, max. | 400 °C |
| Permitted temperature range, min. | -45 °C |
| Pipe version | Rigid without thread |
| Polished surface | no |
| Surface | Electrogalvanized |
| Surface-mounted | yes |
| Underfloor installation (bitumen, hot asphalt) | yes |
| Underfloor installation (screed) | yes |
| With sleeve | no |
