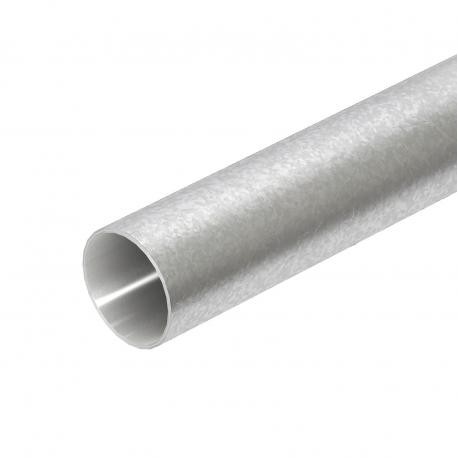

S50W FT 2046598 OBO BETTERMANN Plug-in steel pipe , Ø50, 3000mm, Hot-dip galvanised, DIN EN ISO 1461, Steel,..
S50W FT
2046598
OBO BETTERMANN
15 m.
Cables > Metal installation tube
metal pipe
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Obo Bettermann plug-in steel pipe (part number S50W FT) provides rugged mechanical housing for electrical cables across industrial plants and commercial building systems. It protects internal wiring from mechanical impacts and environmental elements.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Brushed surface: no
- Cavity wall installation: yes
- Classification code: 44571
- CO2 Footprint (GWP) Cradle-to-Gate: 4,0141 kg CO2e / 1 Meter
- Concealed: yes
- Concrete installation: yes
- Connection 1, installation pipe: Pipe end
- Connection 2, installation pipe: Pipe end
- Dimension: Ø50, 3000mm
- Dimension D: 50 mm
- Dimension L: 3000 mm
- Dimension m (mm): M50
- Dimension t: 1,2 mm
- External diameter: 50 mm
- Installation in the earth: yes
- Installation on wood: yes
More info
▲| Brushed surface | no |
|---|---|
| Cavity wall installation | yes |
| Classification code | 44571 |
| CO2 Footprint (GWP) Cradle-to-Gate | 4,0141 kg CO2e / 1 Meter |
| Concealed | yes |
| Concrete installation | yes |
| Connection 1, installation pipe | Pipe end |
| Connection 2, installation pipe | Pipe end |
| Dimension | Ø50, 3000mm |
| Dimension D | 50 mm |
| Dimension L | 3000 mm |
| Dimension m (mm) | M50 |
| Dimension t | 1,2 mm |
| External diameter | 50 mm |
| Installation in the earth | yes |
| Installation on wood | yes |
|---|---|
| Installation outdoors | yes |
| Length | 3000 mm |
| Machines and system installation | yes |
| Material | Steel |
| Permitted temperature range, max. | 400 °C |
| Permitted temperature range, min. | -45 °C |
| Pipe version | Rigid without thread |
| Polished surface | no |
| Surface | Hot-dip galvanised |
| Surface-mounted | yes |
| Underfloor installation (bitumen, hot asphalt) | yes |
| Underfloor installation (screed) | yes |
| With sleeve | no |
