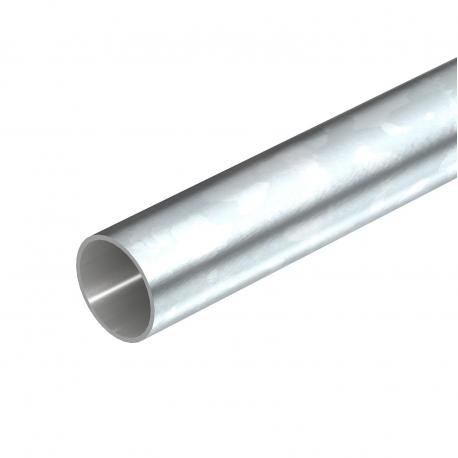

S40W G 2046844 OBO BETTERMANN Stapa plug-in pipe without thread, ø40, 3000mm, Electrogalvanised, DIN 50961, ..
S40W G
2046844
OBO BETTERMANN
15 m.
Cables > Metal installation tube
metal pipe
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Obo Bettermann S40W G is a Stapa plug-in pipe without thread engineered to house and shield electrical conductors in structural projects. Rigid pipe systems prevent accidental damage to internal wiring routed through concealed building sections. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Brushed surface: no
- Cavity wall installation: yes
- Classification code: 44571
- CO2 Footprint (GWP) Cradle-to-Gate: 2,6699 kg CO2e / 1 Meter
- Concealed: yes
- Concrete installation: yes
- Connection 1, installation pipe: Pipe end
- Connection 2, installation pipe: Pipe end
- Dimension: Ø40, 3000mm
- Dimension D: 40 mm
- Dimension L: 3000 mm
- Dimension m (mm): M40
- Dimension t: 1,2 mm
- External diameter: 40 mm
- Installation in the earth: no
- Installation on wood: yes
More info
▲| Brushed surface | no |
|---|---|
| Cavity wall installation | yes |
| Classification code | 44571 |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,6699 kg CO2e / 1 Meter |
| Concealed | yes |
| Concrete installation | yes |
| Connection 1, installation pipe | Pipe end |
| Connection 2, installation pipe | Pipe end |
| Dimension | Ø40, 3000mm |
| Dimension D | 40 mm |
| Dimension L | 3000 mm |
| Dimension m (mm) | M40 |
| Dimension t | 1,2 mm |
| External diameter | 40 mm |
| Installation in the earth | no |
| Installation on wood | yes |
|---|---|
| Installation outdoors | no |
| Length | 3000 mm |
| Machines and system installation | no |
| Material | Steel |
| Permitted temperature range, max. | 400 °C |
| Permitted temperature range, min. | -45 °C |
| Pipe version | Rigid without thread |
| Polished surface | no |
| Surface | Electrogalvanized |
| Surface-mounted | yes |
| Underfloor installation (bitumen, hot asphalt) | yes |
| Underfloor installation (screed) | yes |
| With sleeve | no |
