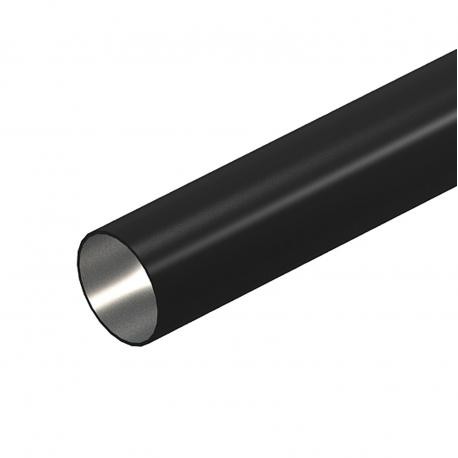

OBO BETTERMANN S32W SW S32W SW 2046568 OBO BETTERMANN Plug-in steel pipe , Ø32, 3000mm, Black, Painted, Steel, St View larger
Images are for illustrative purposes only. Please refer to data sheet for details

S32W SW 2046568 OBO BETTERMANN Plug-in steel pipe , Ø32, 3000mm, Black, Painted, Steel, St

S32W SW

2046568

OBO BETTERMANN

21 m.

Plug-in steel pipe , Ø32, 3000mm, Black, Painted, Steel, St Armoured steel pipe without thread, black. Electrical installation pipe without threaded ends according to EN 61386-1 for mechanical protection of cables. With burr-free inner wall.

Cables > Metal installation tube
metal pipe

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Obo Bettermann plug-in steel pipe (part number S32W SW) is utilized across commercial and industrial building sectors to house and protect electrical wiring from physical damage, ensuring neat and organized cable routing.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Brushed surface: no
  • Cavity wall installation: yes
  • Classification code: 44561
  • CO2 Footprint (GWP) Cradle-to-Gate: 1,8255 kg CO2e / 1 Meter
  • Colour: Jet black
  • RAL 9005:
  • Concealed: yes
  • Concrete installation: yes
  • Connection 1, installation pipe: Pipe end
  • Connection 2, installation pipe: Pipe end
  • Dimension: Ø32, 3000mm
  • Dimension D: 32 mm
  • Dimension L: 3000 mm
  • Dimension m (mm): M32
  • Dimension t: 1,2 mm
  • External diameter: 32 mm
  • Installation in the earth: no

More info

▲
Brushed surfaceno
Cavity wall installationyes
Classification code44561
CO2 Footprint (GWP) Cradle-to-Gate1,8255 kg CO2e / 1 Meter
ColourJet black; RAL 9005
Concealedyes
Concrete installationyes
Connection 1, installation pipePipe end
Connection 2, installation pipePipe end
DimensionØ32, 3000mm
Dimension D32 mm
Dimension L3000 mm
Dimension m (mm)M32
Dimension t1,2 mm
External diameter32 mm
Installation in the earthno
Installation on woodyes
Installation outdoorsno
Length3000 mm
Machines and system installationyes
MaterialSteel
Permitted temperature range, max.250 °C
Permitted temperature range, min.-45 °C
Pipe versionRigid without thread
Polished surfaceno
SurfacePES50 - Polyester/epoxy
Surface-mountedyes
Underfloor installation (bitumen, hot asphalt)yes
Underfloor installation (screed)yes
With sleeveno
