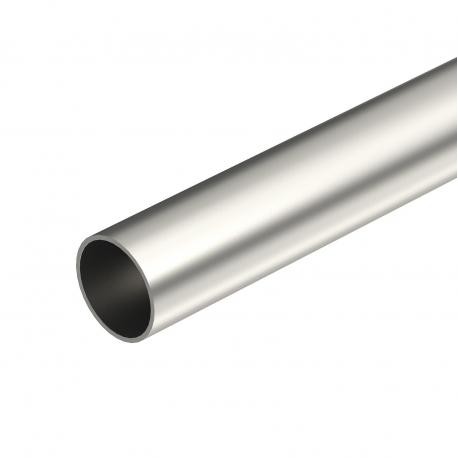

OBO BETTERMANN S25W A2 S25W V2A 2046722 OBO BETTERMANN Stainless steel pipe without thread, ø25, 3000mm, Stainless steel, grade 304.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

S25W V2A 2046722 OBO BETTERMANN Stainless steel pipe without thread, ø25, 3000mm, Stainless steel, grade 304..

S25W A2

2046722

OBO BETTERMANN

30 m.

Stainless steel pipe without thread, ø25, 3000mm, Stainless steel, grade 304, VA, 1.4301 Stainless steel pipe, V2A. Electrical installation pipe without threaded ends to EN 61386-1 for mechanical protection of cables. With burr-free inner wall. Corrosion protection class 4 (high).Classification according to DIN EN 61386-1: 555711404010

Cables > Metal installation tube
metal pipe

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Obo Bettermann S25W A2 is a stainless steel pipe without thread built to organize and protect electrical cables in demanding installation environments. Rigid conduit runs shield sensitive wiring from physical damage and moisture exposure in industrial settings. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Brushed surface: yes
  • Cavity wall installation: yes
  • Classification code: 55571
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,9673 kg CO2e / 1 Meter
  • Concealed: yes
  • Concrete installation: yes
  • Connection 1, installation pipe: Pipe end
  • Connection 2, installation pipe: Pipe end
  • Dimension: Ø25, 3000mm
  • Dimension D: 25 mm
  • Dimension L: 3000 mm
  • Dimension m (mm): M25
  • Dimension t: 1 mm
  • Installation in the earth: yes
  • Installation on wood: yes
  • Installation outdoors: yes

More info

▲
Brushed surfaceyes
Cavity wall installationyes
Classification code55571
CO2 Footprint (GWP) Cradle-to-Gate0,9673 kg CO2e / 1 Meter
Concealedyes
Concrete installationyes
Connection 1, installation pipePipe end
Connection 2, installation pipePipe end
DimensionØ25, 3000mm
Dimension D25 mm
Dimension L3000 mm
Dimension m (mm)M25
Dimension t1 mm
Installation in the earthyes
Installation on woodyes
Installation outdoorsyes
Length3000 mm
Machines and system installationyes
MaterialStainless steel 1.4301
Permitted temperature range, max.400 °C
Permitted temperature range, min.-45 °C
Pipe versionRigid without thread
Polished surfaceno
SurfaceBright, treated
Surface-mountedyes
Underfloor installation (bitumen, hot asphalt)yes
Underfloor installation (screed)yes
