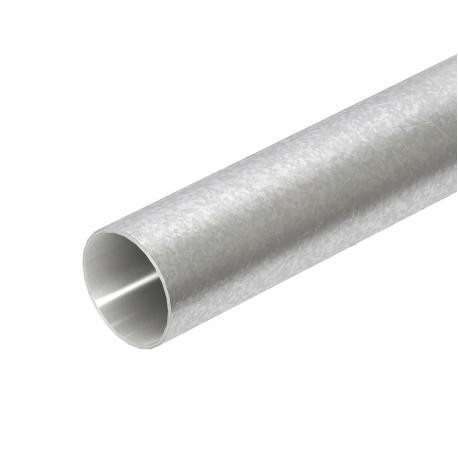

S20W FT 2046594 OBO BETTERMANN Plug-in steel pipe , Ø20, 3000mm, Hot-dip galvanised, DIN EN ISO 1461, Steel,..
S20W FT
2046594
OBO BETTERMANN
30 m.
Cables > Metal installation tube
metal pipe
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A versatile structural element, the Obo Bettermann S20W FT plug-in steel pipe serves as a protective raceway for electrical cables across diverse industrial and commercial construction sites. Rigid metal pipes shield wiring from mechanical damage, moisture, and debris in walls, concrete, or exposed areas.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Brushed surface: no
- Cavity wall installation: yes
- Classification code: 44571
- CO2 Footprint (GWP) Cradle-to-Gate: 1,1746 kg CO2e / 1 Meter
- Concealed: yes
- Concrete installation: yes
- Connection 1, installation pipe: Pipe end
- Connection 2, installation pipe: Pipe end
- Dimension: Ø20, 3000mm
- Dimension D: 20 mm
- Dimension L: 3000 mm
- Dimension m (mm): M20
- Dimension t: 1 mm
- External diameter: 20 mm
- Installation in the earth: yes
- Installation on wood: yes
More info
▲| Brushed surface | no |
|---|---|
| Cavity wall installation | yes |
| Classification code | 44571 |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,1746 kg CO2e / 1 Meter |
| Concealed | yes |
| Concrete installation | yes |
| Connection 1, installation pipe | Pipe end |
| Connection 2, installation pipe | Pipe end |
| Dimension | Ø20, 3000mm |
| Dimension D | 20 mm |
| Dimension L | 3000 mm |
| Dimension m (mm) | M20 |
| Dimension t | 1 mm |
| External diameter | 20 mm |
| Installation in the earth | yes |
| Installation on wood | yes |
|---|---|
| Installation outdoors | yes |
| Length | 3000 mm |
| Machines and system installation | yes |
| Material | Steel |
| Permitted temperature range, max. | 400 °C |
| Permitted temperature range, min. | -45 °C |
| Pipe version | Rigid without thread |
| Polished surface | no |
| Surface | Hot-dip galvanised |
| Surface-mounted | yes |
| Underfloor installation (bitumen, hot asphalt) | yes |
| Underfloor installation (screed) | yes |
| With sleeve | no |
