View larger
Images are for illustrative purposes only. Please refer to data sheet for details

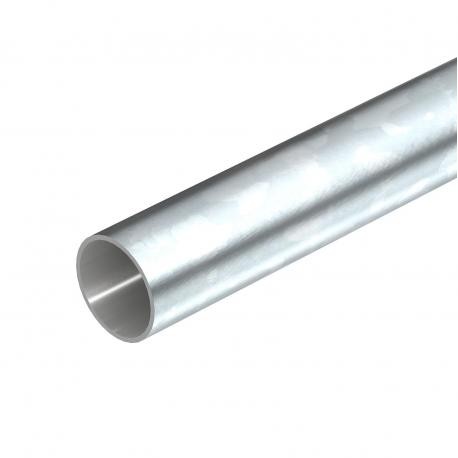

S16W G 2046840 OBO BETTERMANN Stapa plug-in pipe without thread, ø16, 3000mm, Electrogalvanised, DIN 50961, ..
S16W G
2046840
OBO BETTERMANN
30 m.
Stapa plug-in pipe without thread, ø16, 3000mm, Electrogalvanised, DIN 50961, Steel, St
Electrogalvanised steel pipe, without thread. Electrical installation pipe without threaded ends according to EN 61386-1 for mechanical protection of cables. With burr-free inner wall.
Cables > Metal installation tube
metal pipe
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Brushed surface | no |
|---|---|
| Cavity wall installation | yes |
| Classification code | 44571 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,7384 kg CO2e / 1 Meter |
| Concealed | yes |
| Concrete installation | yes |
| Connection 1, installation pipe | Pipe end |
| Connection 2, installation pipe | Pipe end |
| Dimension | Ø16, 3000mm |
| Dimension D | 16 mm |
| Dimension L | 3000 mm |
| Dimension m (mm) | M16 |
| Dimension t | 1 mm |
| External diameter | 16 mm |
| Installation in the earth | no |
| Installation on wood | yes |
|---|---|
| Installation outdoors | no |
| Length | 3000 mm |
| Machines and system installation | no |
| Material | Steel |
| Permitted temperature range, max. | 400 °C |
| Permitted temperature range, min. | -45 °C |
| Pipe version | Rigid without thread |
| Polished surface | no |
| Surface | Electrogalvanized |
| Surface-mounted | yes |
| Underfloor installation (bitumen, hot asphalt) | yes |
| Underfloor installation (screed) | yes |
| With sleeve | no |
