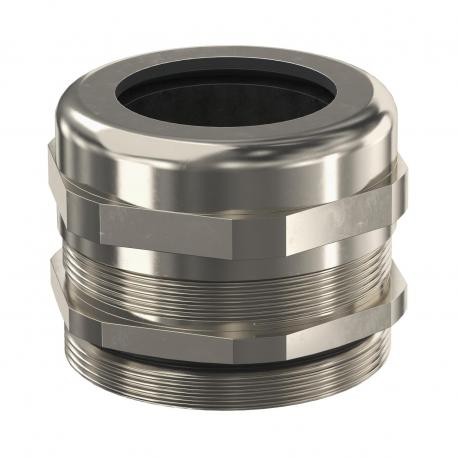

V-TEC VM63 MS 2086060 OBO BETTERMANN Cable gland , M63, Nickel-plated, Brass, CuZn
V-TEC VM63 MS
2086060
OBO BETTERMANN
5 Pcs.
Cable gland , M63, Nickel-plated, Brass, CuZn
Cap nut cable gland, metric thread, silver grey, nickel-plated. With metric connecting thread to IEC 423, robust cap nut cable gland with large sealing area. Strain relief, wringing protection and tightness over the whole clamping area. Neoprene sealing ring. Polyamide terminal insert. With pre-mounted O sealing ring on connection thread, VDE-tested to DIN EN 50262, protection rating IP68 at 5 bar for 1 hr, max. permitted ambient temperature -20 to +100°C.* Prices according to DEL notation.
Cables > Cable gland
metal Gls
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,7709 kg CO2e / 1 Piece |
| Dimension | M63 |
| Dimension E | 70 mm |
| Dimension L max. | 44,5 mm |
| Dimension L1 | 10 mm |
| Dimension L2 | 5 mm |
| Dimension L3 | 31 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| Flat cable gland | no |
| For Ex zone | Without |
| Halogen-free | no |
| Hexagonal corner dimension | 70 mm |
| Impact-resistant | no |
| Material | Brass |
| Permitted temperature range, max. | 100 °C |
|---|---|
| Permitted temperature range, min. | -20 °C |
| Protection rating | IP68 |
| Sealing area D, max. | 42 mm |
| Sealing area D, min. | 32 mm |
| Sealing insert, multiple | no |
| Strain relief option | yes |
| Surface | Nickel-plated |
| Thread | M63 x 1,5 |
| Thread length | 10 mm |
| Thread type | Metric |
| Type of seal | Sealing ring |
| Unstable torque | 13,5 Nm |
| Version for | Straight |
| WAF | 65 |
| With locknut | no |
