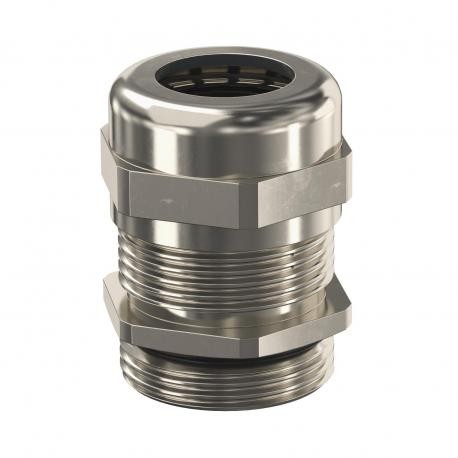

V-TEC VM25 MS 2086036 OBO BETTERMANN Cable gland , M25, Nickel-plated, Brass, CuZn
V-TEC VM25 MS
2086036
OBO BETTERMANN
25 Pcs.
Cables > Cable gland
metal Gls
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for secure power and signal distribution, the Obo Bettermann V-TEC VM25 MS cable gland offers reliable metal shielding and mechanical clamping for plant infrastructure. Facilities depend on such nickel-plated brass fittings to preserve enclosure integrity across vibrating or exposed machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend protection: no
- CO2 Footprint (GWP) Cradle-to-Gate: 0,1078 kg CO2e / 1 Piece
- Dimension: M25
- Dimension E: 30 mm
- Dimension L max.: 29,5 mm
- Dimension L1: 7 mm
- Dimension L2: 4 mm
- Dimension L3: 17 mm
- explosion-proof: no
- Fibre-glass reinforced: no
- Flat cable gland: no
- For Ex zone: Without
- Halogen-free: no
- Hexagonal corner dimension: 30 mm
- Impact-resistant: no
- Material: Brass
More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1078 kg CO2e / 1 Piece |
| Dimension | M25 |
| Dimension E | 30 mm |
| Dimension L max. | 29,5 mm |
| Dimension L1 | 7 mm |
| Dimension L2 | 4 mm |
| Dimension L3 | 17 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| Flat cable gland | no |
| For Ex zone | Without |
| Halogen-free | no |
| Hexagonal corner dimension | 30 mm |
| Impact-resistant | no |
| Material | Brass |
| Permitted temperature range, max. | 100 °C |
|---|---|
| Permitted temperature range, min. | -20 °C |
| Protection rating | IP68 |
| Sealing area D, max. | 16 mm |
| Sealing area D, min. | 11 mm |
| Sealing insert, multiple | no |
| Strain relief option | yes |
| Surface | Nickel-plated |
| Thread | M25 x 1,5 |
| Thread length | 7 mm |
| Thread type | Metric |
| Type of seal | Sealing ring |
| Unstable torque | 6,7 Nm |
| Version for | Straight |
| WAF | 27 |
| With locknut | no |
