View larger
Images are for illustrative purposes only. Please refer to data sheet for details

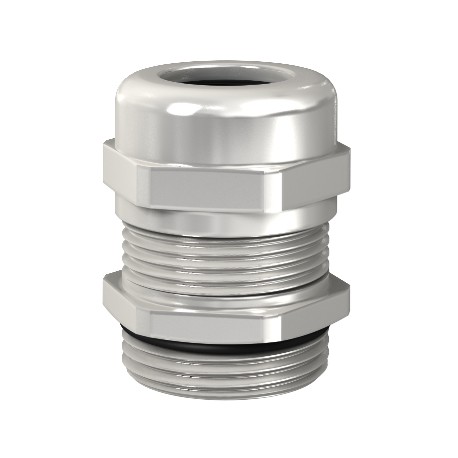

V-TEC VM20 EMV-K 2086169 OBO BETTERMANN Cable gland EMV contact spring-shielded cable, M20, Nickel-plated, B..
V-TEC VM20 EMV-K
2086169
OBO BETTERMANN
25 Pcs.
Cable gland EMV contact spring-shielded cable, M20, Nickel-plated, Brass, CuZn
Cap nut cable gland, EMC spring contact, metric thread, nickel-plated. With metric connecting thread to IEC 423, robust EMV cap-nut cable gland with large sealing area. The contact between the gland and braided shield is made using a contact spring. Strain relief, wringing protection and tightness over the whole clamping area. Neoprene sealing ring. Polyamide terminal insert. With pre-mounted O sealing ring on connection thread, protection rating IP 68 at 5 bar for 1 hr.* Prices according to DEL notation.
Cables > Cable gland
metal Gls
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0922 kg CO2e / 1 Piece |
| Dimension | M20 |
| Dimension D1 | 9 mm |
| Dimension E | 24 mm |
| Dimension G | M20x1,5 mm |
| Dimension L | 27,5 mm |
| Dimension L1 | 6 mm |
| Dimension L2 | 3,5 mm |
| Dimension L3 | 13,3 mm |
| Fibre-glass reinforced | no |
| Flat cable gland | no |
| For Ex zone | Without |
| Halogen-free | no |
| Height | 33,5 mm |
| Impact-resistant | no |
| Length | 22 mm |
| Material | Brass |
|---|---|
| Permitted temperature range, max. | 100 °C |
| Permitted temperature range, min. | -20 °C |
| Protection rating | IP68 |
| Sealing area D, max. | 13 mm |
| Sealing area D, min. | 9 mm |
| Sealing insert, multiple | no |
| Strain relief option | yes |
| Surface | Nickel-plated |
| Thread | M20 x 1,5 |
| Thread length | 6 mm |
| Type of seal | Sealing ring |
| Version for | Straight |
| WAF | 22 |
| Width | 24 mm |
| With locknut | no |
