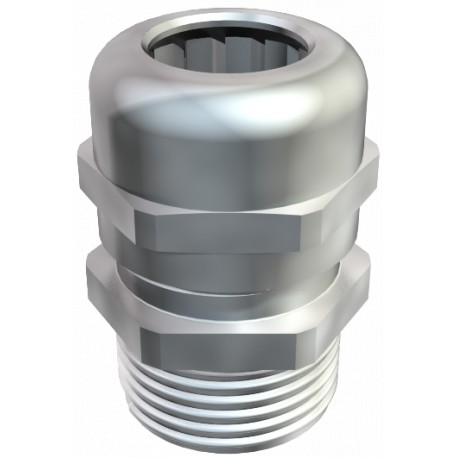

OBO BETTERMANN V-TEC VM LM75MS2 V-TEC VM LM75MS2 2086159 OBO BETTERMANN Cable gland with long connection thread, M75, Nickel-plated, Brass, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

V-TEC VM LM75MS2 2086159 OBO BETTERMANN Cable gland with long connection thread, M75, Nickel-plated, Brass, ..

V-TEC VM LM75MS2

2086159

OBO BETTERMANN

3 Pcs.

Cable gland with long connection thread, M75, Nickel-plated, Brass, CuZn Cap nut cable gland, metric thread, silver grey, long, nickel-plated. With metric connecting thread to IEC 423, robust cap nut cable gland with large sealing area. Strain relief, wringing protection and tightness over the whole clamping area. For thicker housing wall thicknesses in conjunction with locknuts. Neoprene sealing ring. Polyamide terminal insert. With pre-mounted sealing ring on connection thread, protection rating IP 68 at 5 bar for 1 hr.With long connection thread. * Prices according to DEL notation.

Cables > Cable gland
metal Gls

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built to accommodate thick-walled or multi-layer penetrations, the V-TEC VM LM75MS2 2086159 OBO BETTERMANN Cable gland with long connection thread, M75, Nickel-plated, Brass, .. provides extended reach through thick switchboard walls. Metal construction ensures durable mechanical performance and secure grounding properties in high-wear settings.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bend protection: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 2,5159 kg CO2e / 1 Piece
  • Dimension: M75
  • Dimension E: 97 mm
  • Dimension L max.: 42 mm
  • Dimension L1: 18 mm
  • Dimension L2: 7 mm
  • Dimension L3: 25 mm
  • explosion-proof: no
  • Fibre-glass reinforced: no
  • Flat cable gland: no
  • For Ex zone: Without
  • Halogen-free: no
  • Impact-resistant: no
  • Material: Brass
  • Permitted temperature range, max.: 100 °C

More info

▲
Bend protectionno
CO2 Footprint (GWP) Cradle-to-Gate2,5159 kg CO2e / 1 Piece
DimensionM75
Dimension E97 mm
Dimension L max.42 mm
Dimension L118 mm
Dimension L27 mm
Dimension L325 mm
explosion-proofno
Fibre-glass reinforcedno
Flat cable glandno
For Ex zoneWithout
Halogen-freeno
Impact-resistantno
MaterialBrass
Permitted temperature range, max.100 °C
Permitted temperature range, min.-20 °C
Protection ratingIP68
Sealing area D, max.60 mm
Sealing area D, min.53 mm
Sealing insert, multipleno
Strain relief optionyes
SurfaceNickel-plated
ThreadM75 x 1,5
Thread length18 mm
Thread typeMetric
Type of sealSealing ring
Version forStraight
WAF90
With locknutno
