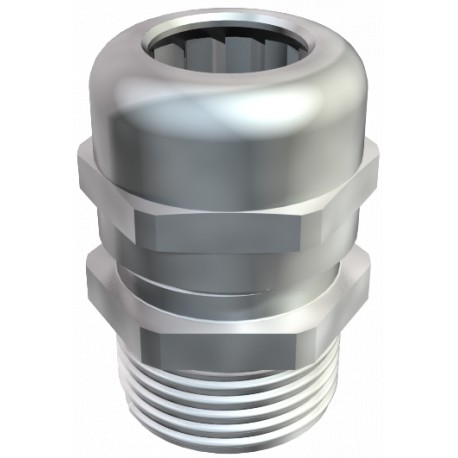

V-TEC VM LM75MS1 2086156 OBO BETTERMANN Cable gland with long connection thread, M75, Nickel-plated, Brass, ..
V-TEC VM LM75MS1
2086156
OBO BETTERMANN
3 Pcs.
Cables > Cable gland
metal Gls
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Equipped with an extended thread profile, the Obo Bettermann V-TEC VM LM75MS1 Cable gland accommodates thick enclosure walls or mounting plates while maintaining a dependable seal around heavy industrial wiring. Nickel-plated brass construction ensures long-term corrosion resistance and durability in harsh settings.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend protection: no
- CO2 Footprint (GWP) Cradle-to-Gate: 2,8746 kg CO2e / 1 Piece
- Dimension: M75
- Dimension E: 97 mm
- Dimension L max.: 42 mm
- Dimension L1: 18 mm
- Dimension L2: 7 mm
- Dimension L3: 25 mm
- explosion-proof: no
- Fibre-glass reinforced: no
- Flat cable gland: no
- For Ex zone: Without
- Halogen-free: no
- Impact-resistant: no
- Material: Brass
- Permitted temperature range, max.: 100 °C
More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 2,8746 kg CO2e / 1 Piece |
| Dimension | M75 |
| Dimension E | 97 mm |
| Dimension L max. | 42 mm |
| Dimension L1 | 18 mm |
| Dimension L2 | 7 mm |
| Dimension L3 | 25 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| Flat cable gland | no |
| For Ex zone | Without |
| Halogen-free | no |
| Impact-resistant | no |
| Material | Brass |
| Permitted temperature range, max. | 100 °C |
|---|---|
| Permitted temperature range, min. | -20 °C |
| Protection rating | IP68 |
| Sealing area D, max. | 55 mm |
| Sealing area D, min. | 48 mm |
| Sealing insert, multiple | no |
| Strain relief option | yes |
| Surface | Nickel-plated |
| Thread | M75 x 1,5 |
| Thread length | 18 mm |
| Thread type | Metric |
| Type of seal | Sealing ring |
| Version for | Straight |
| WAF | 90 |
| With locknut | no |
