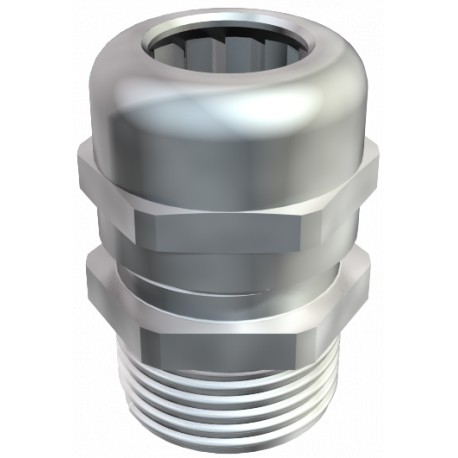

V-TEC VM LM50 MS 2086147 OBO BETTERMANN Cable gland with long connection thread, M50, Nickel-plated, Brass, ..
V-TEC VM LM50 MS
2086147
OBO BETTERMANN
5 Pcs.
Cables > Cable gland
metal Gls
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for high-capacity wiring requirements, the V-TEC VM LM50 MS brass cable gland by Obo Bettermann provides robust mechanical retention and sealing for large-diameter cables. Industrial automation systems depend on heavy brass glands to secure main power feeds entering large distribution switchgear. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend protection: no
- CO2 Footprint (GWP) Cradle-to-Gate: 0,6217 kg CO2e / 1 Piece
- Dimension: M50
- Dimension E: 60 mm
- Dimension L max.: 38,5 mm
- Dimension L1: 14 mm
- Dimension L2: 4,5 mm
- Dimension L3: 25 mm
- explosion-proof: no
- Fibre-glass reinforced: no
- Flat cable gland: no
- For Ex zone: Without
- Halogen-free: no
- Impact-resistant: no
- Material: Brass
- Permitted temperature range, max.: 100 °C
More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,6217 kg CO2e / 1 Piece |
| Dimension | M50 |
| Dimension E | 60 mm |
| Dimension L max. | 38,5 mm |
| Dimension L1 | 14 mm |
| Dimension L2 | 4,5 mm |
| Dimension L3 | 25 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| Flat cable gland | no |
| For Ex zone | Without |
| Halogen-free | no |
| Impact-resistant | no |
| Material | Brass |
| Permitted temperature range, max. | 100 °C |
|---|---|
| Permitted temperature range, min. | -20 °C |
| Protection rating | IP68 |
| Sealing area D, max. | 35 mm |
| Sealing area D, min. | 24 mm |
| Sealing insert, multiple | no |
| Strain relief option | yes |
| Surface | Nickel-plated |
| Thread | M50 x 1,5 |
| Thread length | 14 mm |
| Thread type | Metric |
| Type of seal | Sealing ring |
| Version for | Straight |
| WAF | 55 |
| With locknut | no |
