View larger
Images are for illustrative purposes only. Please refer to data sheet for details

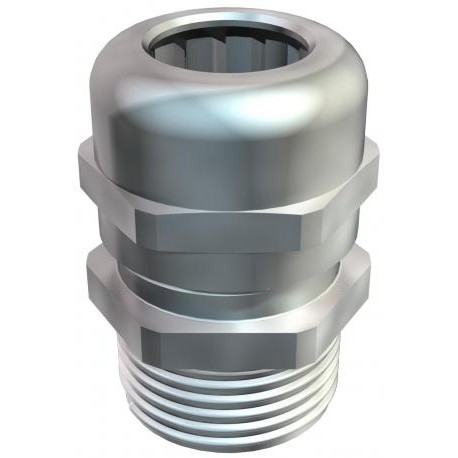

V-TEC VM LM32 MS 2086135 OBO BETTERMANN Cable gland with long connection thread, M32, Nickel-plated, Brass, ..
V-TEC VM LM32 MS
2086135
OBO BETTERMANN
10 Pcs.
Cable gland with long connection thread, M32, Nickel-plated, Brass, CuZn
V-TEC VM LM32 MS cable gland, with long thread M32 Brass, CuZn, nickel-plated
Cap nut cable gland, metric thread, silver grey, long, nickel-plated. With metric connecting thread to IEC 423, robust cap nut cable gland with large sealing area. Strain relief, wringing protection and tightness over the whole clamping area. For thicker housing wall thicknesses in conjunction with locknuts. Neoprene sealing ring. Polyamide terminal insert. With pre-mounted sealing ring on connection thread, VDE-tested to DIN EN 50262, protection rating IP 68 at 5 bar for 1 hr.With long connection thread. * Prices according to DEL notation.
Cables > Cable gland
metal Gls
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2 kg CO2e / 1 Piece |
| Dimension | M32 |
| Dimension E | 36 mm |
| Dimension L max. | 30 mm |
| Dimension L1 | 13 mm |
| Dimension L2 | 4,5 mm |
| Dimension L3 | 18,5 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| Flat cable gland | no |
| For Ex zone | Without |
| Halogen-free | no |
| Impact-resistant | no |
| Material | Brass |
| Permitted temperature range, max. | 100 °C |
|---|---|
| Permitted temperature range, min. | -20 °C |
| Protection rating | IP68 |
| Sealing area D, max. | 21 mm |
| Sealing area D, min. | 14 mm |
| Sealing insert, multiple | no |
| Strain relief option | yes |
| Surface | Nickel-plated |
| Thread | M32 x 1,5 |
| Thread length | 13 mm |
| Thread type | Metric |
| Type of seal | Sealing ring |
| Version for | Straight |
| WAF | 34 |
| With locknut | no |
