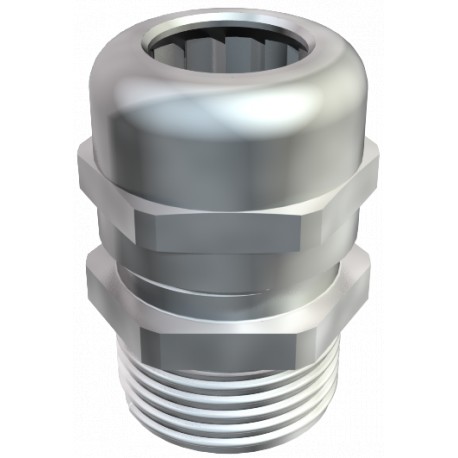

OBO BETTERMANN V-TEC VM LM16 MS V-TEC VM LM16 MS 2086117 OBO BETTERMANN Cable gland with long connection thread, M16, Nickel-plated, Brass, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

V-TEC VM LM16 MS 2086117 OBO BETTERMANN Cable gland with long connection thread, M16, Nickel-plated, Brass, ..

V-TEC VM LM16 MS

2086117

OBO BETTERMANN

50 Pcs.

Cable gland with long connection thread, M16, Nickel-plated, Brass, CuZn V-TEC VM LM16 MS cable gland with long thread M16 Brass, CuZn nickel-plated Cable gland with cap nut, long metric thread, nickel-plated. Robust cable gland with metric connection thread according to IEC 423 type with cap nut for situations where high tightness is required. Tensile relief, torsion protection and tightness along the entire tightening area. For large wall thicknesses of enclosures in conjunction with lock nuts. Neoprene packing. With sealing ring pre-mounted on the connection thread, with VDE approval according to EN 50262, IP68 degree of protection with 5 bar/1 h. With long connection thread. * Prices according to DEL annotation.

Cables > Cable gland
metal Gls

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Cable gland with long connection thread, M16, Nickel-plated, Brass, CuZn

V-TEC VM LM16 MS cable gland with long thread M16 Brass, CuZn nickel-plated

Cable gland with cap nut, long metric thread, nickel-plated. Robust cable gland with metric connection thread according to IEC 423 type with cap nut for situations where high tightness is required. Tensile relief, torsion protection and tightness along the entire tightening area. For large wall thicknesses of enclosures in conjunction with lock nuts. Neoprene packing. With sealing ring pre-mounted on the connection thread, with VDE approval according to EN 50262, IP68 degree of protection with 5 bar/1 h. With long connection thread. * Prices according to DEL annotation.
