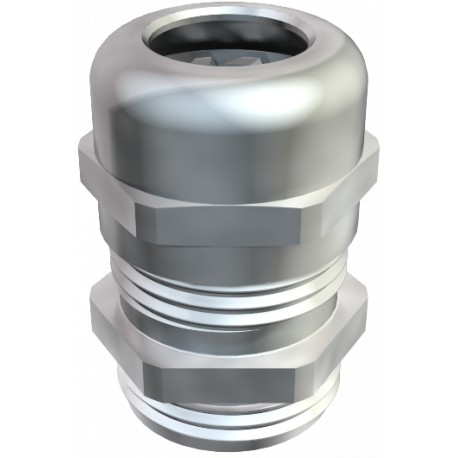

OBO BETTERMANN V-TEC PG42 MS V-TEC PG42 MS 2085690 OBO BETTERMANN Cable gland , PG42, Nickel-plated, Brass, CuZn View larger
Images are for illustrative purposes only. Please refer to data sheet for details

V-TEC PG42 MS 2085690 OBO BETTERMANN Cable gland , PG42, Nickel-plated, Brass, CuZn

V-TEC PG42 MS

2085690

OBO BETTERMANN

5 Pcs.

Cable gland , PG42, Nickel-plated, Brass, CuZn Cap nut cable gland, PG thread, nickel-plated. Cable gland of cap-nut design with large sealing area, and strain relief and torsion protection for high sealing demands with Pg connection thread to DIN 40430, polyamide terminal insert, sealing ring of chloroprene/nitrile rubber, with pre-mounted O ring on the connection thread.Protection rating IP 68 at 5 bar: 1 hr, tested to DIN EN 62444."Normal" connection thread length, according to DIN 46320.* Prices according to DEL notation.

Cables > Cable gland
metal Gls

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Constructed from nickel-plated brass, the V-TEC PG42 MS 2085690 OBO BETTERMANN Cable gland , PG42, Nickel-plated, Brass, CuZn offers exceptional mechanical strength and thermal resilience for high-capacity cable routing. These heavy-duty metallic glands safeguard industrial wiring against harsh physical abuse and environmental hazards.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bend protection: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,8629 kg CO2e / 1 Piece
  • Dimension: PG42
  • Dimension E: 61 mm
  • Dimension L max.: 52 mm
  • Dimension L1: 10 mm
  • Dimension L2: 6 mm
  • Dimension L3: 31 mm
  • explosion-proof: no
  • Fibre-glass reinforced: no
  • Flat cable gland: no
  • For Ex zone: Without
  • For Ex zone dust: Without
  • For Ex zone gas: Without
  • Halogen-free: no
  • Impact-resistant: no

More info

▲
Bend protectionno
CO2 Footprint (GWP) Cradle-to-Gate0,8629 kg CO2e / 1 Piece
DimensionPG42
Dimension E61 mm
Dimension L max.52 mm
Dimension L110 mm
Dimension L26 mm
Dimension L331 mm
explosion-proofno
Fibre-glass reinforcedno
Flat cable glandno
For Ex zoneWithout
For Ex zone dustWithout
For Ex zone gasWithout
Halogen-freeno
Impact-resistantno
MaterialBrass
Nominal thread size42
Permitted temperature range, max.100 °C
Permitted temperature range, min.-20 °C
Protection ratingIP68
Sealing area D, max.38 mm
Sealing area D, min.24 mm
Sealing insert, multipleno
Splittable glandno
Strain relief optionyes
SurfaceNickel-plated
ThreadPg 42
Thread length10 mm
Thread typePG
Type of sealSealing ring
Version forStraight
WAF57
With locknutno
