View larger
Images are for illustrative purposes only. Please refer to data sheet for details

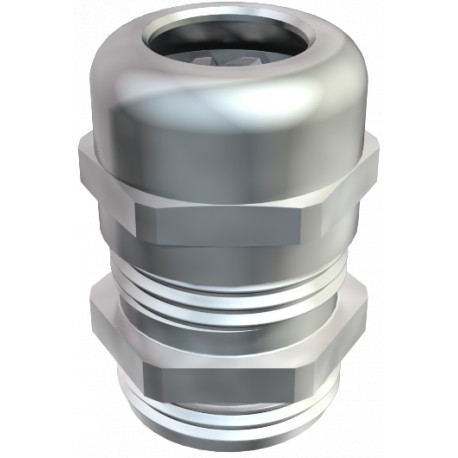

V-TEC PG16 MS 2085658 OBO BETTERMANN Cable gland , PG16, Nickel-plated, Brass, CuZn
V-TEC PG16 MS
2085658
OBO BETTERMANN
25 Pcs.
Cable gland , PG16, Nickel-plated, Brass, CuZn
Cap nut cable gland, PG thread, nickel-plated. Cable gland of cap-nut design with large sealing area, and strain relief and torsion protection for high sealing demands with Pg connection thread to DIN 40430, polyamide terminal insert, sealing ring of chloroprene/nitrile rubber, with pre-mounted O ring on the connection thread.Protection rating IP 68 at 5 bar: 1 hr, tested to DIN EN 62444."Normal" connection thread length, according to DIN 46320.* Prices according to DEL notation.
Cables > Cable gland
metal Gls
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1282 kg CO2e / 1 Piece |
| Dimension | PG16 |
| Dimension E | 26,7 mm |
| Dimension L max. | 27 mm |
| Dimension L1 | 6,5 mm |
| Dimension L2 | 4 mm |
| Dimension L3 | 17 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| Flat cable gland | no |
| For Ex zone | Without |
| For Ex zone dust | Without |
| For Ex zone gas | Without |
| Halogen-free | no |
| Impact-resistant | no |
| Material | Brass |
| Nominal thread size | 16 |
|---|---|
| Permitted temperature range, max. | 100 °C |
| Permitted temperature range, min. | -20 °C |
| Protection rating | IP68 |
| Sealing area D, max. | 14 mm |
| Sealing area D, min. | 7 mm |
| Sealing insert, multiple | no |
| Splittable gland | no |
| Strain relief option | yes |
| Surface | Nickel-plated |
| Thread | Pg 16 |
| Thread length | 6,5 mm |
| Thread type | PG |
| Type of seal | Sealing ring |
| Version for | Straight |
| WAF | 24 |
| With locknut | no |
