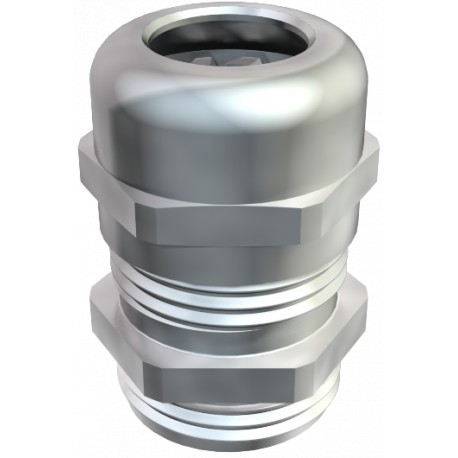

OBO BETTERMANN V-TEC PG11 MS V-TEC PG11 MS 2085623 OBO BETTERMANN Cable gland , PG11, Nickel-plated, Brass, CuZn View larger
Images are for illustrative purposes only. Please refer to data sheet for details

V-TEC PG11 MS 2085623 OBO BETTERMANN Cable gland , PG11, Nickel-plated, Brass, CuZn

V-TEC PG11 MS

2085623

OBO BETTERMANN

50 Pcs.

Cable gland , PG11, Nickel-plated, Brass, CuZn Cap nut cable gland, PG thread, nickel-plated. Cable gland of cap-nut design with large sealing area, and strain relief and torsion protection for high sealing demands with Pg connection thread to DIN 40430, polyamide terminal insert, sealing ring of chloroprene/nitrile rubber, with pre-mounted O ring on the connection thread.Protection rating IP 68 at 5 bar: 1 hr, tested to DIN EN 62444."Normal" connection thread length, according to DIN 46320.* Prices according to DEL notation.

Cables > Cable gland
metal Gls

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Obo Bettermann brass cable gland offers durable metallic routing protection for electrical conductors entering machinery housings and control boxes. Its robust threaded design ensures dependable strain relief and grounding performance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bend protection: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0934 kg CO2e / 1 Piece
  • Dimension: PG11
  • Dimension E: 22,2 mm
  • Dimension L max.: 24 mm
  • Dimension L1: 6 mm
  • Dimension L2: 3 mm
  • Dimension L3: 15 mm
  • explosion-proof: no
  • Fibre-glass reinforced: no
  • Flat cable gland: no
  • For Ex zone: Without
  • For Ex zone dust: Without
  • For Ex zone gas: Without
  • Halogen-free: no
  • Impact-resistant: no

More info

▲
Bend protectionno
CO2 Footprint (GWP) Cradle-to-Gate0,0934 kg CO2e / 1 Piece
DimensionPG11
Dimension E22,2 mm
Dimension L max.24 mm
Dimension L16 mm
Dimension L23 mm
Dimension L315 mm
explosion-proofno
Fibre-glass reinforcedno
Flat cable glandno
For Ex zoneWithout
For Ex zone dustWithout
For Ex zone gasWithout
Halogen-freeno
Impact-resistantno
MaterialBrass
Nominal thread size11
Permitted temperature range, max.100 °C
Permitted temperature range, min.-20 °C
Protection ratingIP68
Sealing area D, max.10 mm
Sealing area D, min.3,5 mm
Sealing insert, multipleno
Splittable glandno
Strain relief optionyes
SurfaceNickel-plated
ThreadPg 11
Thread length6 mm
Thread typePG
Type of sealSealing ring
Version forStraight
WAF20
With locknutno
