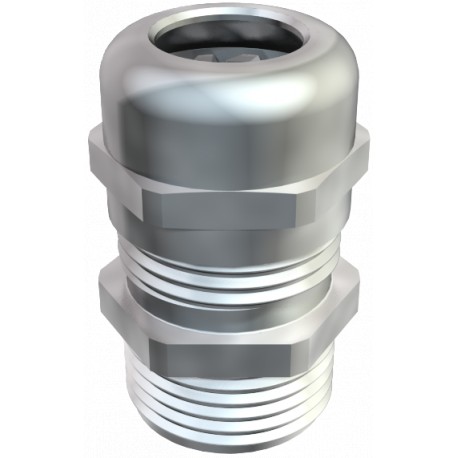

OBO BETTERMANN V-TEC L PG48 MS V-TEC L PG48 MS 2085836 OBO BETTERMANN Cable gland with long connection thread, PG48, Nickel-plated, Brass, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

V-TEC L PG48 MS 2085836 OBO BETTERMANN Cable gland with long connection thread, PG48, Nickel-plated, Brass, ..

V-TEC L PG48 MS

2085836

OBO BETTERMANN

5 Pcs.

Cable gland with long connection thread, PG48, Nickel-plated, Brass, CuZn Cap nut cable gland, PG thread, long, nickel-plated. Cable gland of cap-nut design with large sealing area, and strain relief and torsion protection for high sealing demands with long Pg connection thread to DIN 40430, for thicker housing wall thicknesses in connection with locknut.Polyamide terminal insert.Sealing ring of chloroprene/nitrile rubber.O ring pre-mounted on connection thread.Protection rating IP 68 at 5 bar: 1 hr.Tested to DIN EN 62444.With long connection thread. * Prices according to DEL notation.

Cables > Cable gland
metal Gls

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Featuring an extended screw thread, the Obo Bettermann V-TEC L PG48 MS cable gland allows secure mounting through thick-walled enclosures and adapter plates. Heavy engineering facilities use long-thread brass glands to achieve reliable mechanical retention for large power lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bend protection: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 1,0824 kg CO2e / 1 Piece
  • Dimension: PG48
  • Dimension E: 69 mm
  • Dimension L max.: 52,5 mm
  • Dimension L1: 15 mm
  • Dimension L2: 6,5 mm
  • Dimension L3: 31 mm
  • explosion-proof: no
  • Fibre-glass reinforced: no
  • Flat cable gland: no
  • For Ex zone: Without
  • For Ex zone dust: Without
  • For Ex zone gas: Without
  • Halogen-free: no
  • Impact-resistant: no

More info

▲
Bend protectionno
CO2 Footprint (GWP) Cradle-to-Gate1,0824 kg CO2e / 1 Piece
DimensionPG48
Dimension E69 mm
Dimension L max.52,5 mm
Dimension L115 mm
Dimension L26,5 mm
Dimension L331 mm
explosion-proofno
Fibre-glass reinforcedno
Flat cable glandno
For Ex zoneWithout
For Ex zone dustWithout
For Ex zone gasWithout
Halogen-freeno
Impact-resistantno
MaterialBrass
Nominal thread size48
Permitted temperature range, max.100 °C
Permitted temperature range, min.-20 °C
Protection ratingIP68
Sealing area D, max.44 mm
Sealing area D, min.36 mm
Sealing insert, multipleno
Splittable glandno
Strain relief optionyes
SurfaceNickel-plated
ThreadPg 48
Thread length15 mm
Thread typePG
Type of sealSealing ring
Version forStraight
WAF64
With locknutno
